Custom Metal Badges
Not every metal badge sits on a car. Himgo casts and stamps brand, product and uniform badges for appliance makers, tool brands, workwear suppliers and promotional product companies who need a mark that isn’t automotive trim.

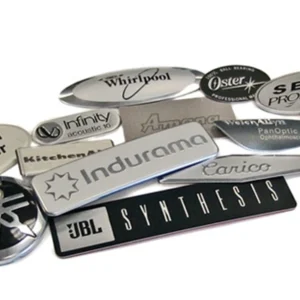

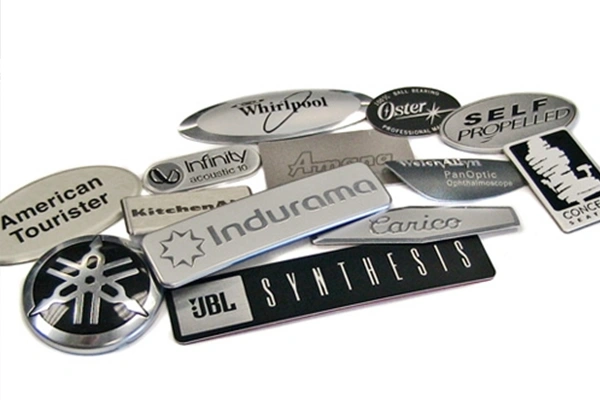

- Zinc alloy die-cast or stamped brass/aluminum body
- 40–100 mm sizes, 2–5 mm thick
- Pin back, safety-pin or 3M adhesive mounting
- MOQ 100–500 pcs, sample lead time usually 5–7 days
Materials & finishes
| Option | Choices |
|---|---|
| Material | Zinc alloy die-cast, stamped brass, aluminum, stainless steel |
| Thickness | 2–5 mm, by process and detail level |
| Size | 40mm, 60mm, 80mm, 100mm, custom to your drawing |
| Finish | Chrome, gold or nickel plating, painted fill, PVD |
| Marking/Process | Zinc die casting for dimensional logos, stamping for flat brand marks, electroforming for fine detail |
| Mounting | Pin back or safety-pin for garments and caps, 3M adhesive or screws for housings and panels |
A garment badge usually needs pin mounting so staff can move it between jackets, while a badge fixed to an appliance or tool housing usually holds better with adhesive or screws.
Typical buyers & uses
- Appliance and power tool manufacturers — apply a stamped or die-cast brand badge to a housing or control panel.
- Uniform and workwear suppliers — order pin-back badges for staff jackets, caps and aprons.
- Promotional product companies — resell branded metal badges as corporate gifts or event giveaways.
- Furniture and equipment makers — add a small adhesive badge to mark model or brand on a finished product.
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| 40mm stamped brass badge, pin back | $0.42 |
| 60mm zinc alloy badge, plated, adhesive back | $0.75 |
| 100mm die-cast badge, multi-color paint fill, screw mount | $1.60 |
Indicative only. Final price depends on process, plating and mounting hardware, and quantity.
Ordering
- MOQ usually 100–500 pcs, by badge complexity
- Sample lead time usually 5–7 days; bulk usually 12–30 days, by quantity
- Send your logo artwork, preferred mounting (pin, adhesive, screw) and the garment or product surface it attaches to
- Samples are approved before the production run starts — see how we work for the full process
FAQ
Should a uniform badge use pin mounting or adhesive?
Pin or safety-pin backing suits a badge that moves between jackets or caps; adhesive suits a badge fixed to one surface.
Can a stamped badge hold fine text at 40mm?
Stamping renders clean outlines and simple text well at 40mm; finer or layered text usually reads better die-cast or electroformed.
Can you supply matching badges across a product line?
Yes, one tooling set can produce consistent badges across several product sizes or finishes in the same order.
What’s the minimum order for a first badge run?
MOQ is usually 100–500 pieces, by complexity, with a sample batch approved before the full run.
Can the badge be a custom brand shape instead of round or shield?
Yes, die casting and stamping both follow your outline, so a custom silhouette badge is standard, not an upcharge item.
