Pin Mount Metal Badges
Pin-mount badges lock through fabric or a thin panel, holding up better than adhesive on anything handled often.
Description
A pin mount pushes through fabric or a thin panel and locks from the back, which holds a badge in place better than adhesive on anything that flexes or gets handled often. Himgo sets pin length and spacing to the material the badge will attach to before production starts.
Applications
- Uniform and lapel badges
- Cap and bag badges on fabric
- Award or membership badges
- Equipment badges on removable panels
- Badges that need to survive repeated handling
Material and finish choices

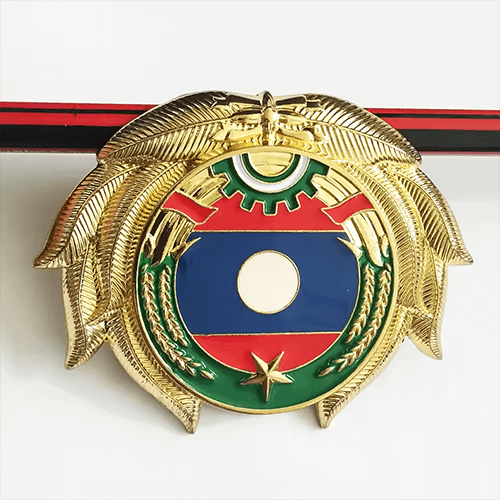

Zinc alloy or brass both hold a pin or stud securely once cast or stamped with the mounting post built in. Plating runs 5-25 micron in chrome, gold, or nickel; painted color-fill is common on lapel-style badges.
Standard size guide
Pin-mount badges sit in the 30mm to 60mm range, smaller than adhesive or grille-mounted pieces since they’re worn or handled rather than fixed to a panel. Pin length is set separately from badge thickness, usually 8-12mm depending on the backing.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Passenger car grille assembly | Pin-mount badge pushed through drilled holes in the grille bar and secured from behind. |
| Motorcycle fender manufacturers | Pin-mount emblem fixed through the fender panel where a flush adhesive bond would fail. |
| Truck door panel fitment | Pin-mount brand badge fitted through the sheet metal door skin. |
| Boat and marine console builders | Pin-mount nameplate fixed through a fiberglass console panel. |
| Industrial control panel makers | Pin-mount ID badge fitted through the enclosure face plate. |
Specifications
| Material | zinc die-cast (other grades on request) |
| Thickness | 2-5 mm |
| Size | 40mm, 60mm, 80mm, 100mm (custom to your drawing) |
| Marking | zinc die casting, metal stamping, electroforming, plating |
| Surface finish | chrome/gold/nickel plating (5-25 micron), painted, PVD (gun-black, gold, rose gold, matte black) |
| Mounting | 3M adhesive, pins, screws, studs |
| Tolerance | +/-0.10-0.20 mm (die-cast) |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
| Tooling | US$150-2,000 one-time (by complexity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| zinc die-cast, 50 mm, 2.5 mm, simple finish | US$0.45-0.92 |
| zinc die-cast, medium size, standard finish | US$0.85-1.40 |
| zinc die-cast, large or specialty finish | US$1.26-2.07 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Send for quote
Badge shape and the material it will pin through both affect pin length – send both. Himgo confirms spacing before sampling. Get a quote from the factory.
