Zinc Alloy Metal Badges
Zinc alloy die-casting gives a badge its raised, three-dimensional shape straight out of the mold.
Description
Zinc alloy, cast under pressure into a mold, is what gives a badge its raised, three-dimensional shape without extra machining steps. The metal fills fine detail in the mold cavity, so sharp letter edges and layered relief come straight out of the casting. It’s the starting material for most raised metal badges, whatever they end up mounted on.
Build options

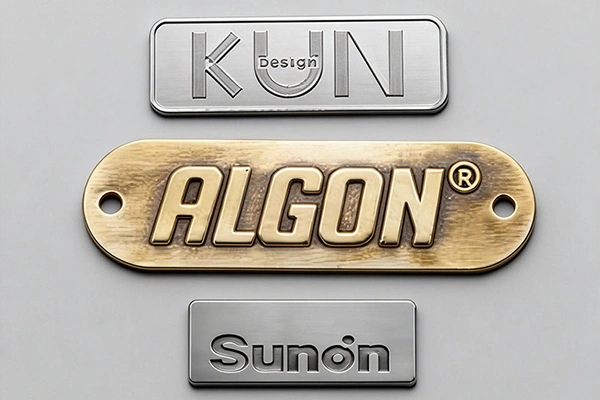

Zinc alloy (Zamak) casts 1-6mm thick, with a die-cast wall of 0.8-1.2mm and relief from 0.5mm up to 3mm for deeper logos. Surface finish follows casting: chrome, gold, or nickel plating at 5-25 micron, painted color fill, or PVD coating in gun-black, rose gold, or matte black.
Common dimensions
Zinc die-cast badges span 40mm to 100mm across, while wall thickness stays near 1mm regardless of overall size – that’s what keeps a cast badge light without warping. Tolerance across a batch holds to +/-0.10-0.20mm.
Fit & applications
- Bag, apparel, and uniform badges
- Appliance and equipment brand badges
- Automotive and motorcycle emblems
- Promotional and corporate-gift badges
- Belt buckles and decorative hardware badges
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Automotive nameplate suppliers | Die-cast zinc alloy badge holding fine relief detail through years of vibration and washing. |
| Motorcycle tank emblem makers | Zinc alloy badge cast with sculpted lettering that stays crisp under tank-mounted vibration. |
| Power tool manufacturers | Zinc alloy brand badge set into the tool housing where it takes repeated handling. |
| Outdoor power equipment brands | Impact-resistant zinc alloy badge fixed to generator or mower housings exposed to knocks. |
| Furniture and cabinetry hardware | Decorative zinc alloy brand tag inset into a drawer front or cabinet door. |
Specifications
| Material | zinc die-cast (other grades on request) |
| Thickness | 2-5 mm |
| Size | 40mm, 60mm, 80mm, 100mm (custom to your drawing) |
| Marking | zinc die casting, metal stamping, electroforming, plating |
| Surface finish | chrome/gold/nickel plating (5-25 micron), painted, PVD (gun-black, gold, rose gold, matte black) |
| Mounting | 3M adhesive, pins, screws, studs |
| Tolerance | +/-0.10-0.20 mm (die-cast) |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
| Tooling | US$150-2,000 one-time (by complexity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| zinc die-cast, 50 mm, 2.5 mm, simple finish | US$0.45-0.92 |
| zinc die-cast, medium size, standard finish | US$0.85-1.40 |
| zinc die-cast, large or specialty finish | US$1.26-2.07 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
How to order
A logo file or reference sample is enough to start. Himgo confirms relief depth and wall thickness before casting a sample. Send your drawing for a factory-direct quote.
