Custom Vehicle Emblems
Vehicle emblems combine a brand logo and model lettering in one die-cast or stamped badge, sized to your drawing.
Description

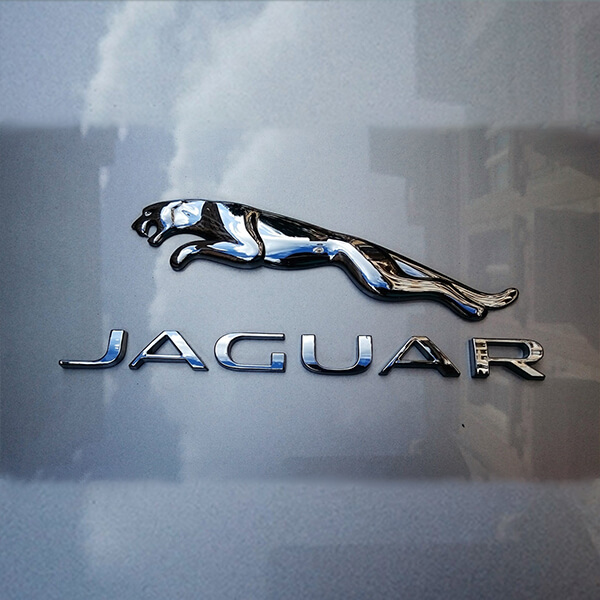

A vehicle badge usually carries two kinds of marks: a brand logo on the hood or trunk, and a model or trim name lower on the body. Himgo casts or stamps both from one drawing, matching shape and relief to how the badge will be viewed and mounted. Zinc alloy handles curved, raised logos. Aluminum or stainless steel suits flatter model lettering.
Sizes & thickness
Common diameters run 40mm, 60mm, 80mm, and 100mm. Overall thickness lands between 2mm and 5mm once studs or pins are factored in, with tolerance held to +/-0.10-0.20mm across a production run. Send the exact footprint from your drawing so Himgo can match it to the mounting point.
Metals and finishes
Zinc alloy (Zamak) is cast 1-6mm thick, with a die-cast wall of 0.8-1.2mm and relief up to 3mm for raised logos. Aluminum, stainless, nickel, and brass cover flatter, stamped designs. Plating runs 5-25 micron in chrome, gold, or nickel tones; PVD adds gun-black, rose gold, or matte black.
Where buyers use it
- Hood or trunk-lid brand logos
- Model and trim-level lettering
- Side-marker or fender badges
- Motorcycle tank emblems
- Limited-edition or dealer badges
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Passenger car dealerships | Brand emblem mounted on the trunk lid or front fender to mark the model line. |
| Motorcycle manufacturers | Badge fitted to the fuel tank side panel carrying the maker’s logo and model name. |
| Commercial trucking fleets | Emblem applied to the cab door to identify the fleet operator or truck brand. |
| Bus and coach operators | Badge centered on the front fascia above the bumper to show the coach brand. |
| Classic car restoration shops | Reproduction emblem matched to the original factory badge for a period-correct rebuild. |
Specifications
| Material | zinc die-cast (other grades on request) |
| Thickness | 2-5 mm |
| Size | 40mm, 60mm, 80mm, 100mm (custom to your drawing) |
| Marking | zinc die casting, metal stamping, electroforming, plating |
| Surface finish | chrome/gold/nickel plating (5-25 micron), painted, PVD (gun-black, gold, rose gold, matte black) |
| Mounting | 3M adhesive, pins, screws, studs |
| Tolerance | +/-0.10-0.20 mm (die-cast) |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
| Tooling | US$150-2,000 one-time (by complexity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| zinc die-cast, 50 mm, 2.5 mm, simple finish | US$0.45-0.92 |
| zinc die-cast, medium size, standard finish | US$0.85-1.40 |
| zinc die-cast, large or specialty finish | US$1.26-2.07 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Start a quote
Send logo artwork or a sample badge with the mounting method – adhesive, pin, or stud. Himgo checks shape, relief depth, and finish against it before sampling. Request a sample before bulk production.
