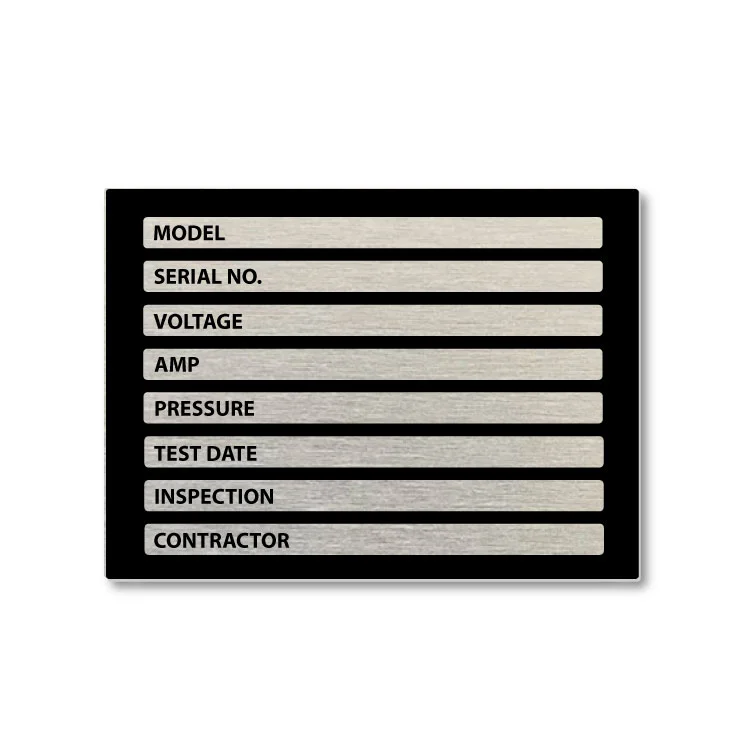

Anodized Aluminum Nameplates
Anodized aluminum nameplates in a colored or natural finish, keeping the part light without giving up surface durability.
Description
Aluminum gets harder and holds color once it is anodized, with no real gain in weight. A thin 5-25 micron layer covers most plates. A thicker hard layer, up to 70 micron, suits parts that see more wear and rubbing. The same 5052 or 6061 stock takes the layer well, over an etched or engraved mark. It also resists fingerprints and light scuffs during daily use.
Metals & surface options
Colored or natural anodized finish, plus brushed or matte alternatives. Laser engraving or chemical etching carries the mark, applied before or after the anodizing step.
Typical projects
- Brand nameplates in a set house color
- Lightweight plates for portable or handheld equipment
- Color-coded plates across a product line
- Panels where weight savings over steel matter
- Nameplates matched to an anodized housing or enclosure color
Sizes we run
80x40mm up to 200x100mm, thickness 0.3-3mm. Any size can be cut to your drawing.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Consumer electronics brands | Applied to device housings in a brand color to carry logo and model identification |
| Outdoor recreational gear makers | Mounted on bikes and kayaks where the anodized layer resists UV fading and moisture |
| Architectural signage projects | Installed on building directories and entry signage where anodized color stays stable outdoors |
| Medical device housings | Applied to diagnostic equipment with anodized color coding used to distinguish device lines |
Specifications
| Material | aluminum (other grades on request) |
| Thickness | 0.3-3 mm |
| Size | 80x40mm, 100x60mm, 120x80mm, 150x100mm (custom to your drawing) |
| Marking | chemical etching |
| Surface finish | anodized (5-25 micron; hard 25-70 micron), brushed (Ra 0.4-1.2 micron), matte, mirror, plated, painted |
| Mounting | 3M/VHB adhesive (0.5-1.1mm), mounting holes, rivets, screws |
| Tolerance | +/-0.05-0.10 mm |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| aluminum, 25 x 28 mm, 0.2 mm, simple finish | US$0.17-0.23 |
| aluminum, medium size, standard finish | US$0.22-0.29 |
| aluminum, large or specialty finish | US$0.27-0.39 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
What to send
Send a color reference, your drawing, and mounting preference. Send your drawing for a factory-direct quote.
