Metal Equipment Nameplates
Showing all 6 results
Adhesive Metal Equipment Nameplates
Product Details
Control Panel Metal Nameplates
Product Details

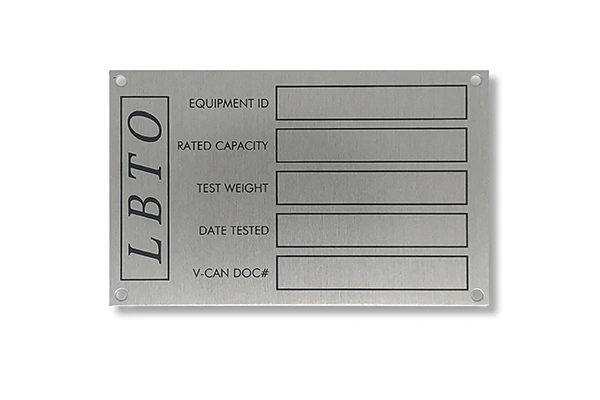

Equipment ID Metal Plates
Product Details

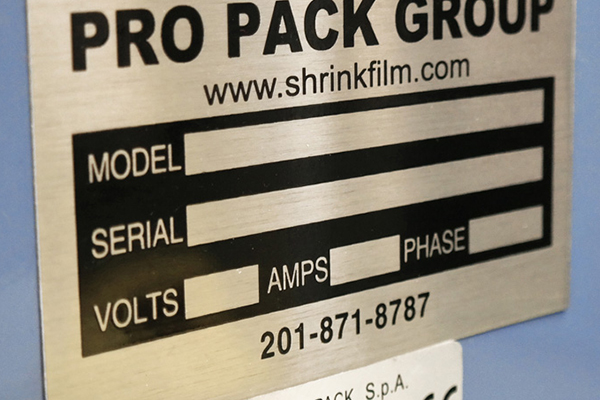

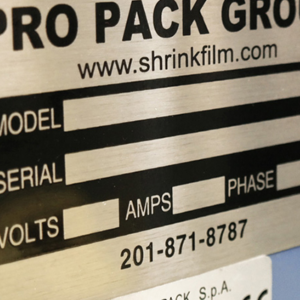

Heavy Duty Metal Equipment Nameplates
Product Details

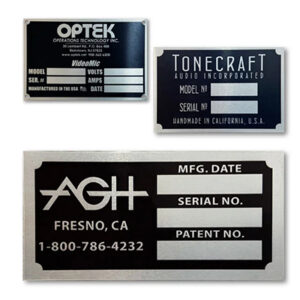

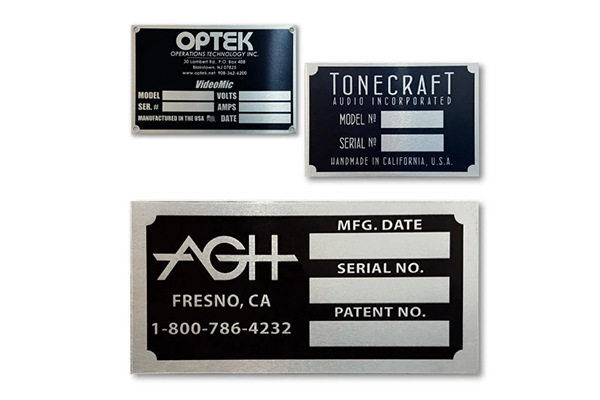

Machinery Metal Equipment Nameplates
Product Details

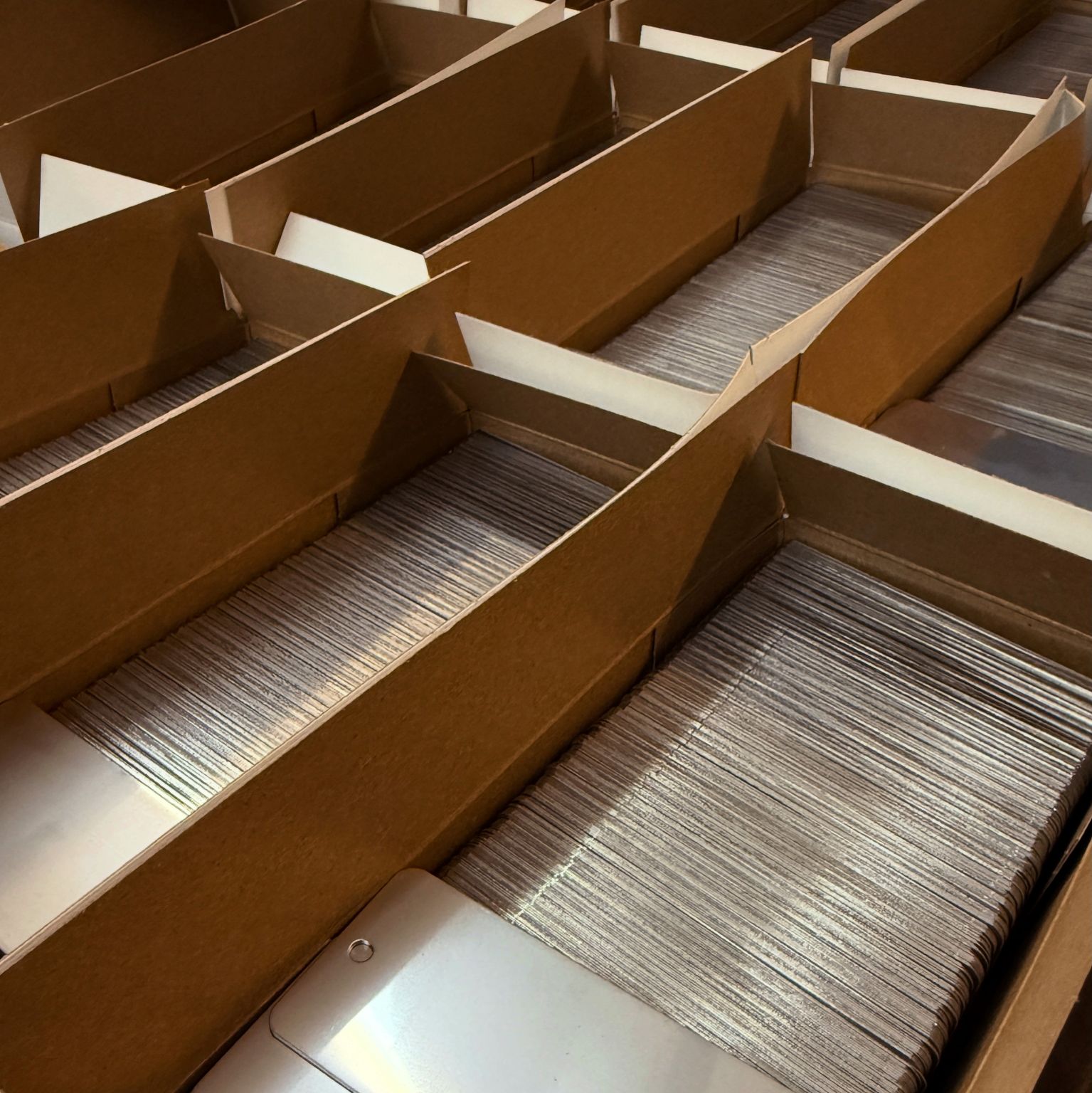

Metal Specification Plates for Equipment
Product Details
A metal equipment nameplate identifies the machine itself — manufacturer, model, serial number, and asset code — not the electrical or pressure ratings printed on a separate rating plate. Himgo produces these for OEMs, machine builders, and maintenance teams who need a permanent ID tag riveted or bonded to the housing.
- 304/316 stainless or aluminum, 0.3–3 mm
- Sizes from 80x40mm to 150x100mm
- Etched, engraved, stamped, or screen printed
- MOQ 100–500 pcs by complexity
- Sample lead time usually 5–7 days
Materials & finishes
| Option | Choices |
|---|---|
| Material | 304/316 stainless, aluminum 5052/6061, brass, or your drawing |
| Thickness | 0.3–3 mm |
| Size | 80x40mm, 100x60mm, 120x80mm, 150x100mm, or custom to your drawing |
| Finish | brushed, matte, mirror, anodized, painted, or plated |
| Marking/Process | chemical etching, laser engraving, screen printing, or stamping |
| Mounting | 3M adhesive, drilled holes, rivets, or screws |
Stainless holds up on machines left outdoors or washed down; aluminum keeps weight off panels mounted indoors on lighter housings.
Typical buyers & uses
- Machine builders — stamping manufacturer name, model, and serial before a unit ships.
- Maintenance teams — tracking asset numbers across a fleet of production machines.
- OEMs — branding equipment with a logo plate plus a model line for dealer records.
- Panel builders — adding a control panel ID tag riveted to the cabinet door.
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| 80x40mm aluminum, stamped serial, adhesive back | $0.17–0.20 |
| 100x60mm stainless, etched logo + model | $0.28–0.34 |
| 150x100mm stainless, engraved data + holes for rivets | $0.45–0.53 |
Indicative only. Final price depends on marking method, mounting hardware, and quantity.
Ordering
- MOQ usually 100–500 pcs, by complexity of the marking.
- Lead time: sample usually 5–7 days; bulk 12–30 days by quantity.
- Send your model/serial numbering format, logo artwork, and mounting preference.
- Samples are approved before the production run starts — see how we work.
FAQ
Can you print sequential serial numbers on each plate?
Yes, send your numbering sequence or starting point and we mark each plate individually during the run.
What is the difference between an equipment nameplate and a rating plate?
A nameplate identifies the machine — maker, model, serial. A rating plate carries regulatory data like voltage or pressure. Many machines carry both.
Will the mark survive years outdoors on heavy equipment?
Etched or engraved stainless holds up well outdoors; painted or printed marks suit indoor or sheltered installs better.
Can nameplates be mounted with rivets on rough cast surfaces?
Yes, we drill mounting holes to your spacing and rivets seat fine on cast or machined housings.
Do you supply proofs before production?
Yes, a digital proof and a physical sample are approved before we run the full order.
