Control Panel Metal Nameplates
Fine laser-engraved or etched legends for control panels, keeping small text and switch symbols sharp and easy to read.
Description
Small text and switch symbols on a control panel need a crisp, legible edge. Laser engraving cuts fine detail, holding mark depth between 0.01mm and 0.05mm. That precision keeps abbreviations, icons, and multi-line labels clear even on compact panels. Himgo engraves or etches these plates to match the panel layout from your drawing. Text height can run down to a few millimeters and still stay sharp.

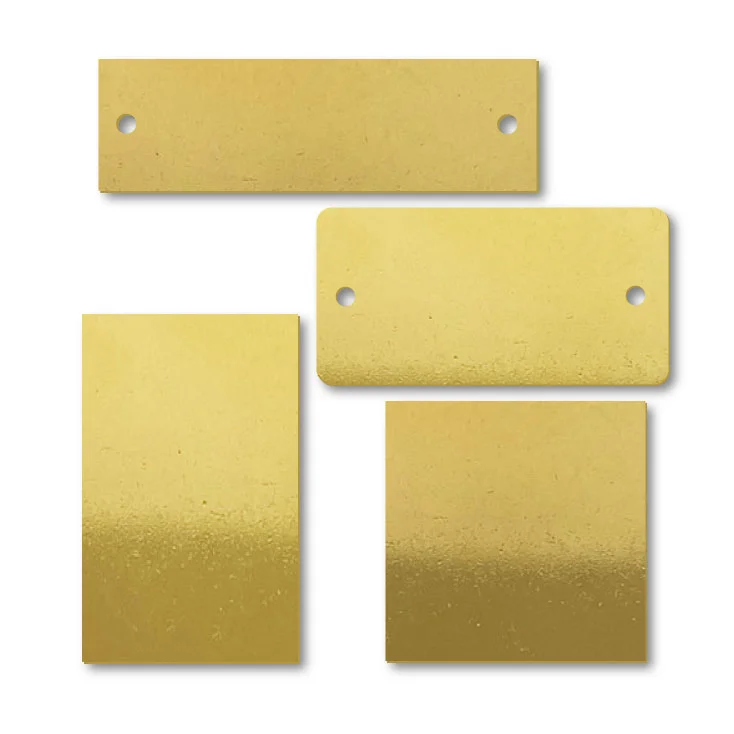

Metals & surface options
Aluminum 5052/6061 or stainless 304/316; brushed, matte, or anodized finish (5-25 micron). Screen printing adds color where a legend needs a coded background rather than a plain engraved line.
Typical projects
- HMI and switchboard legend plates
- Motor-control center panel labels
- Junction box and terminal marking
- Multi-language or icon-based control labels
Sizes we run
Smaller formats such as 80x40mm and 100x60mm fit most panel cutouts. Larger 150x100mm suits grouped legends. Any size to your drawing.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Electrical switchgear panels | Riveted to the panel door showing voltage and amperage ratings next to the breaker layout |
| Industrial control cabinets | Positioned above breaker panels to support lockout/tagout identification during servicing |
| Water treatment plant control rooms | Mounted on the PLC cabinet listing panel function and circuit numbers for operators |
| Generator control panels | Fastened to the genset control box showing model number and electrical output ratings |
Specifications
| Material | 304 stainless (other grades on request) |
| Thickness | 0.3-3 mm |
| Size | 80x40mm, 100x60mm, 120x80mm, 150x100mm (custom to your drawing) |
| Marking | chemical etching |
| Surface finish | anodized (5-25 micron; hard 25-70 micron), brushed (Ra 0.4-1.2 micron), matte, mirror, plated, painted |
| Mounting | 3M/VHB adhesive (0.5-1.1mm), mounting holes, rivets, screws |
| Tolerance | +/-0.05-0.10 mm |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| 304 stainless, 25 x 28 mm, 0.2 mm, simple finish | US$0.24-0.32 |
| 304 stainless, medium size, standard finish | US$0.31-0.41 |
| 304 stainless, large or specialty finish | US$0.38-0.55 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
What to send
Send the panel layout, the text and icon list, and your finish preference. Request a sample before bulk production.
