Metal Specification Plates for Equipment
Larger-format plates built for dense technical data, laid out and sized so every line of text stays readable.
Description
A spec plate sometimes has to fit ten or more lines of data: voltage, amperage, frequency, weight, and more. Cramming that onto a small plate risks text that blurs together. Himgo lays out the fields first, then sizes the plate and text height. That way every line stays legible.
Sizes & thickness
Larger formats such as 150x100mm or 200x100mm give room for multi-field layouts. Thickness typically runs 0.5-1mm, up to 3mm where the plate needs rigid mounting.

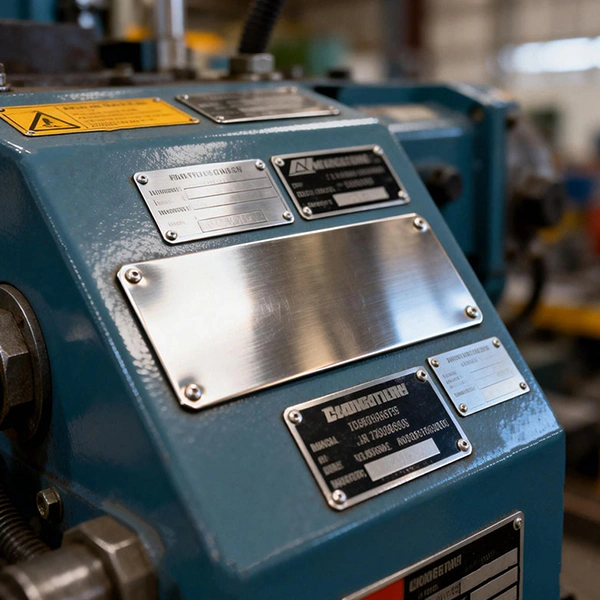

Metals and finishes
A matte or brushed finish cuts glare so dense text reads under shop lighting. Chemical etching holds a tolerance of +/-0.05-0.10mm, keeping small characters consistent across the batch.
Where buyers use it
- Full technical data plates for pumps and compressors
- Electrical rating plates with multi-field layouts
- Spec plates required on OEM equipment
- Plates listing part numbers alongside revision data
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Boiler and pressure vessel manufacturers | Stamped with MAWP and test pressure and fastened to the vessel shell to meet code documentation |
| Electric motor manufacturers | Riveted to the motor frame listing horsepower, RPM, voltage, and frame size |
| Air compressor OEMs | Fastened to the tank shell listing working pressure and tank capacity for the operator |
| Elevator and hoist equipment makers | Mounted in the machine room listing load rating and rated speed as required documentation |
Specifications
| Material | 304 stainless (other grades on request) |
| Thickness | 0.3-3 mm |
| Size | 80x40mm, 100x60mm, 120x80mm, 150x100mm (custom to your drawing) |
| Marking | chemical etching |
| Surface finish | anodized (5-25 micron; hard 25-70 micron), brushed (Ra 0.4-1.2 micron), matte, mirror, plated, painted |
| Mounting | 3M/VHB adhesive (0.5-1.1mm), mounting holes, rivets, screws |
| Tolerance | +/-0.05-0.10 mm |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| 304 stainless, 25 x 28 mm, 0.2 mm, simple finish | US$0.24-0.32 |
| 304 stainless, medium size, standard finish | US$0.31-0.41 |
| 304 stainless, large or specialty finish | US$0.38-0.55 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Start a quote
Send the full text or data list, plus your preferred plate size. Himgo checks line count and text height before confirming the layout. Get a quote from the factory.
