Serialized QR Code Metal Asset Tags
A QR tag paired with its own printed serial number, so each asset stays uniquely identified with or without a scanner. Sequence and count confirmed before production.
Description

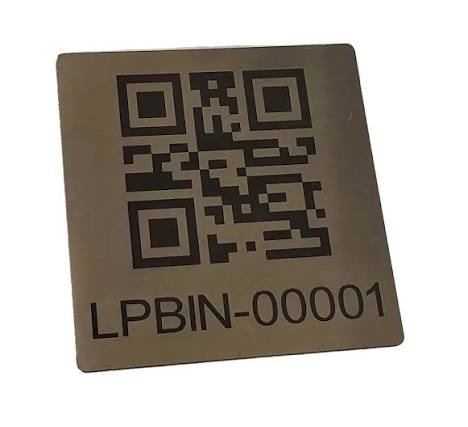

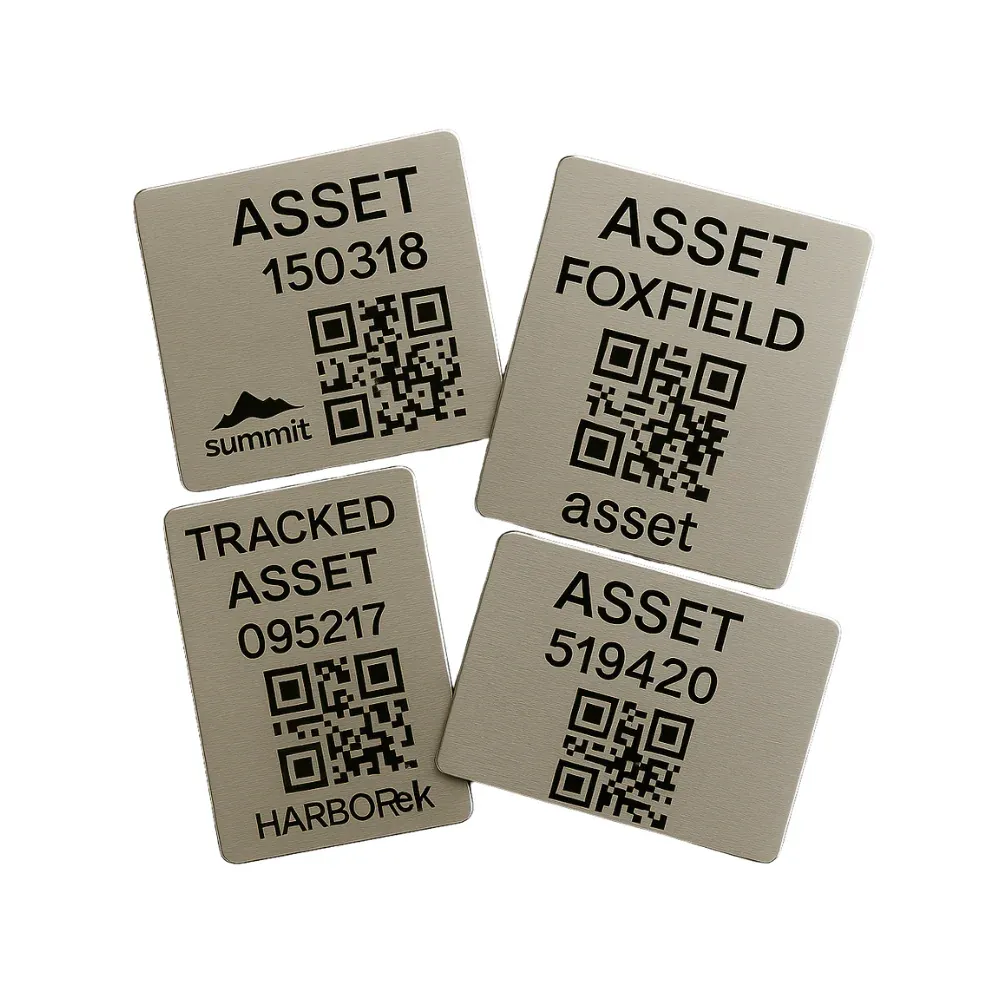

An audit team scanning a warehouse floor needs every tag to carry its own number, not a repeated code. A serialized QR tag pairs a unique QR pattern with a printed or engraved serial number on the same face, so a person can confirm the match without a scanner in hand.
Where it fits
- Fixed-asset tracking with a one-to-one match to records
- Audit and compliance rounds without a scanner handy
- Maintenance logs referenced by serial number on a work order
- Warehouses with similar assets sitting side by side
Common sizes
25x25mm and 30mm round are usual, sized to keep both the QR module and the number legible. 50x20mm suits a longer number string. Sizes cut to a drawing on request.
Materials & finishes
Aluminum keeps the run light for IT and office equipment; stainless suits harsher conditions. Anodized, matte, or brushed finish is available. The starting number, count, and format are confirmed before the laser file is generated, so numbering stays in order.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Municipal vehicle fleets | Sequentially numbered tag riveted to dashboards across the fleet; QR scan matches each vehicle to its registration and service record in the city’s asset database. |
| Construction equipment rental yards | Serialized tag welded to excavators and generators; QR code tracks which numbered unit is checked out to which job site and rental duration. |
| Hospital biomedical equipment | Sequential tag fixed to infusion pumps and monitors; QR scan links each numbered unit to its sterilization and inspection cycle. |
| Government surplus property registries | Serialized tag bolted to furniture and machinery slated for auction; QR code ties each item number to its disposal record. |
Specifications
| Material | anodized aluminum (other grades on request) |
| Thickness | 0.3-1.5 mm |
| Size | 25x25mm, 40x15mm, 50x20mm, 75x25mm (custom to your drawing) |
| Marking | laser engraving for variable data |
| Surface finish | colored or natural anodized, brushed, matte |
| Mounting | 3M/VHB adhesive, mounting holes, rivets |
| Tolerance | +/-0.05-0.10 mm |
| Variable data | serial numbers, QR codes, or barcodes |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| anodized aluminum, 25 x 50 mm, 0.5 mm, simple finish | US$0.15-0.26 |
| anodized aluminum, medium size, standard finish | US$0.24-0.36 |
| anodized aluminum, large or specialty finish | US$0.33-0.52 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Getting a quote
Send the starting serial number, the count needed, and the QR data source. Get a quote from the factory.
