Adhesive Aluminum Asset Tags

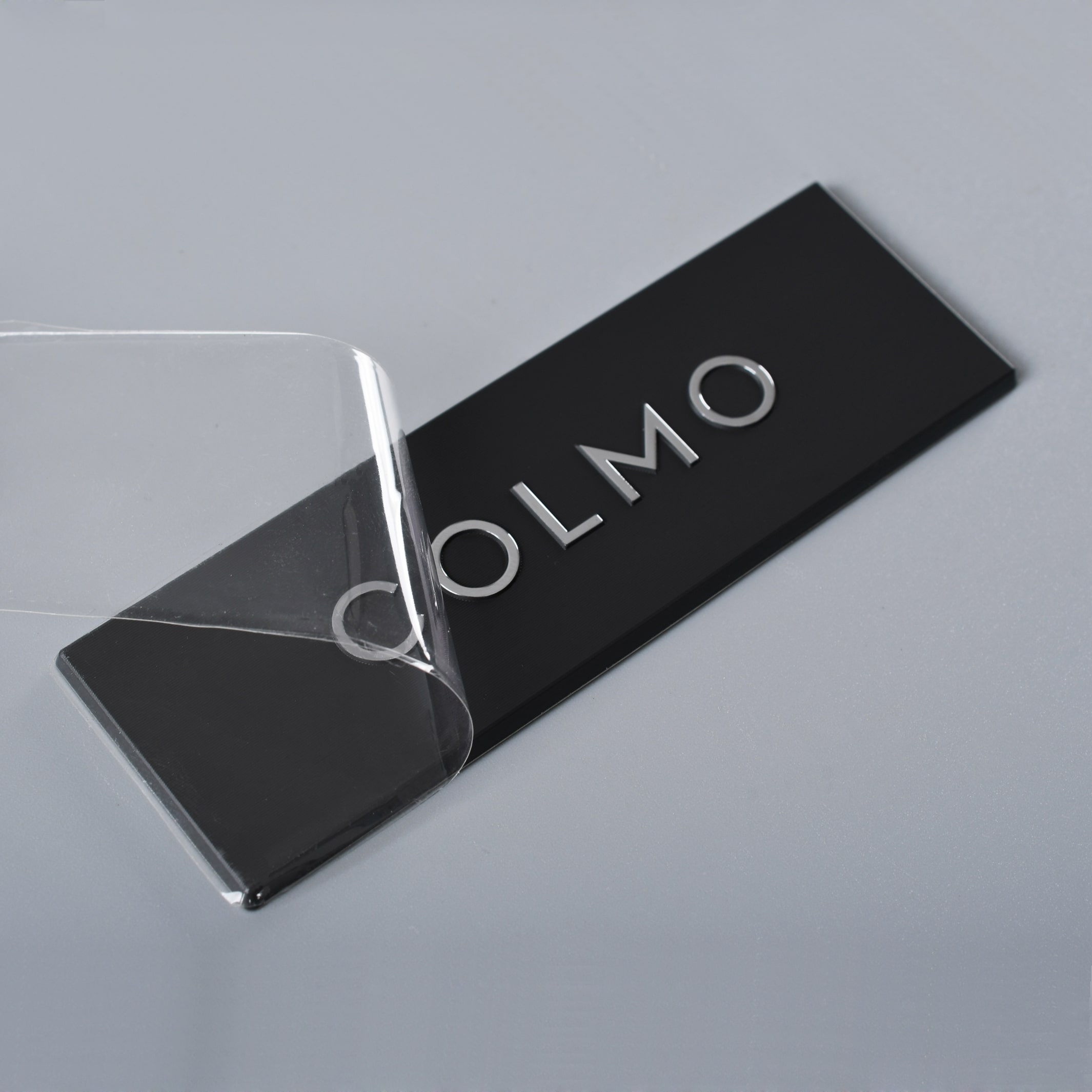

Peel-and-stick aluminum asset tags for surfaces that can’t be drilled, using a 3M/VHB adhesive backing.
Description
Some equipment surfaces can’t be drilled for a mounting hole. An adhesive-backed aluminum tag solves that with a peel-and-stick VHB layer instead. The thin aluminum body keeps the tag low-profile once it’s applied.
Build options
Aluminum alloy at 0.3-1.5mm gives a stable base for the adhesive layer. Anodized or matte finish both bond well with 3M/VHB backing. Himgo checks the mounting surface material during drawing review, since some plastics and coated metals need a different adhesive grade. Surface prep instructions ship with each order to help the bond hold.
Common dimensions
25x25mm and 30mm round suit small housings and enclosures. 40x15mm fits narrow panel edges. Any footprint can be matched to your drawing.
Fit & applications
- Enclosures and housings that can’t be drilled
- Painted or coated equipment surfaces
- Consumer electronics and appliance ID tags
- Curved or narrow mounting edges
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Laptop and desktop computer fleets | Applied to the chassis lid or base where drilling into the housing isn’t an option during IT onboarding. |
| Medical device housings | Stuck to the smooth plastic or metal casing of monitors and pumps without penetrating the sealed enclosure. |
| Office electronics | Applied to the rear housing of monitors and printers as each unit is entered into inventory. |
| Rental power tools with sealed housings | Mounted on the tool body where an adhesive fix avoids breaking the water or dust seal. |
| Laboratory mobile carts and glassware racks | Applied to flat metal surfaces where rivets or screws aren’t practical on shared lab equipment. |
Specifications
| Material | aluminum (other grades on request) |
| Thickness | 0.3-1.5 mm |
| Size | 25x25mm, 40x15mm, 50x20mm, 75x25mm (custom to your drawing) |
| Marking | laser engraving for variable data |
| Surface finish | colored or natural anodized, brushed, matte |
| Mounting | 3M/VHB adhesive, mounting holes, rivets |
| Tolerance | +/-0.05-0.10 mm |
| Variable data | serial numbers, QR codes, or barcodes |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| aluminum, 25 x 50 mm, 0.5 mm, simple finish | US$0.15-0.26 |
| aluminum, medium size, standard finish | US$0.24-0.36 |
| aluminum, large or specialty finish | US$0.33-0.52 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
How to order
Send the mounting surface material and tag size for review. Note whether the surface is painted, plastic, or bare metal. Request a sample before bulk production.
