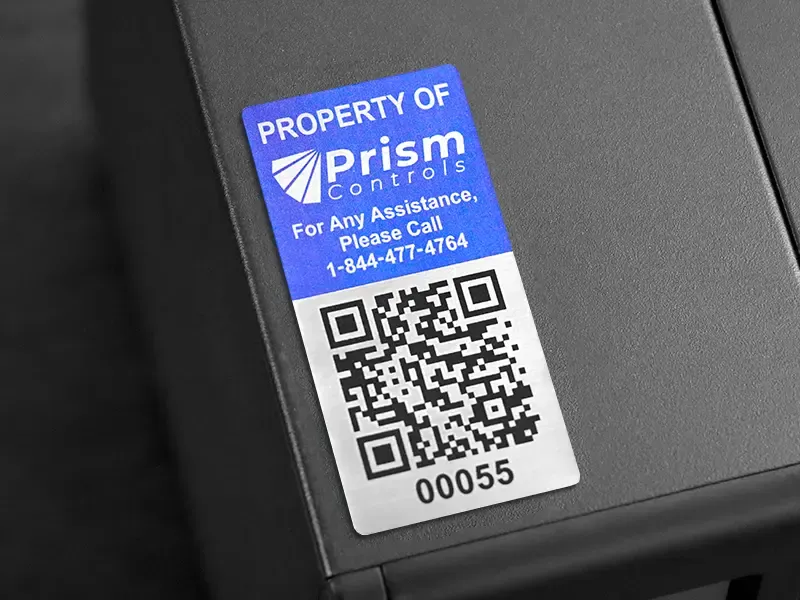

QR Code Stainless Steel Asset Tags
Stainless tags laser-marked with a QR code for scan-based tracking in washdown or outdoor conditions.
Description
A QR code needs a mark that stays crisp even where the tag gets washed down or handled roughly. Stainless steel holds that mark better than a lighter-gauge tag in harsh conditions. The code still needs enough contrast against the metal for a phone camera to read it.
Sizes & thickness
40x15mm and 75x25mm leave room for a QR module plus a reference number. 30mm round works for compact equipment. Thickness runs 0.3-1.5mm, toward the heavier end for outdoor duty. Other footprints can be matched to your drawing.
Metals and finishes
304 or 316 stainless resists the scratching that can break up a QR pattern over time. Brushed or matte finish gives contrast without excess glare under a scan. Himgo sizes the QR module count to fit your data string and tag footprint.
Where buyers use it
- Outdoor or washdown equipment tracked by phone scan
- Food and beverage processing asset audits
- Utility and field equipment inventories
- Maintenance rounds in wet or dusty areas
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Food processing plant machinery | Riveted to washdown-rated equipment; staff scan the QR code during sanitation audits to log maintenance. |
| Utility field equipment | Mounted on transformers and meters; field technicians scan the tag on site to pull install date and inspection history. |
| Hospital sterile processing departments | Fixed to equipment carts, scanned to log compliance checks through the sterilization workflow. |
| Marine dock and port equipment | Mounted on dockside gear exposed to salt air, where the stainless tag resists corrosion around the printed code. |
| Chemical plant valve stations | Fixed near valve assemblies, with the QR code linking crews to safety data and maintenance logs. |
Specifications
| Material | stainless steel (other grades on request) |
| Thickness | 0.3-1.5 mm |
| Size | 25x25mm, 40x15mm, 50x20mm, 75x25mm (custom to your drawing) |
| Marking | laser engraving for variable data |
| Surface finish | colored or natural anodized, brushed, matte |
| Mounting | 3M/VHB adhesive, mounting holes, rivets |
| Tolerance | +/-0.05-0.10 mm |
| Variable data | serial numbers, QR codes, or barcodes |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| stainless steel, 25 x 50 mm, 0.5 mm, simple finish | US$0.21-0.36 |
| stainless steel, medium size, standard finish | US$0.34-0.51 |
| stainless steel, large or specialty finish | US$0.47-0.74 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Start a quote
Send the QR data set and the environment the tag will face. Request a sample before bulk production.
