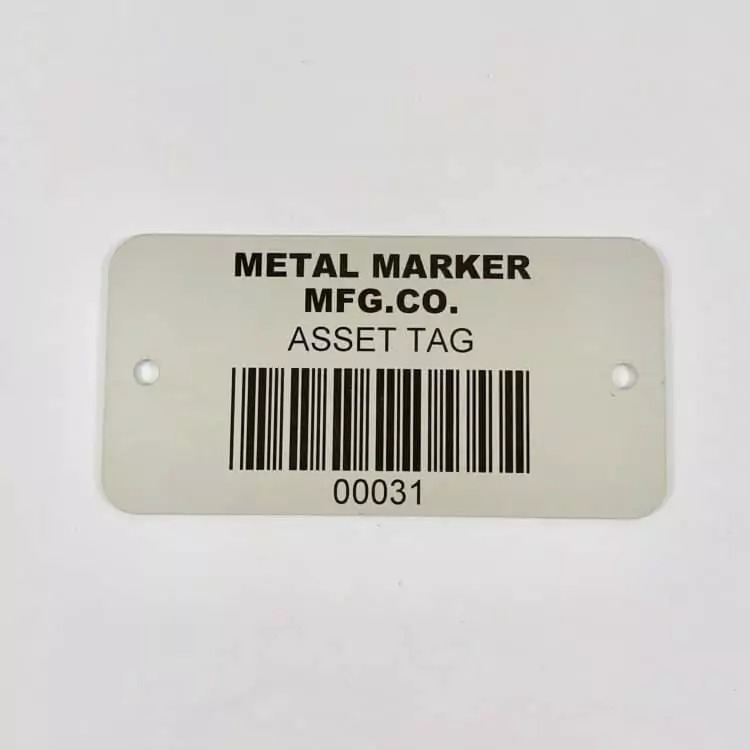

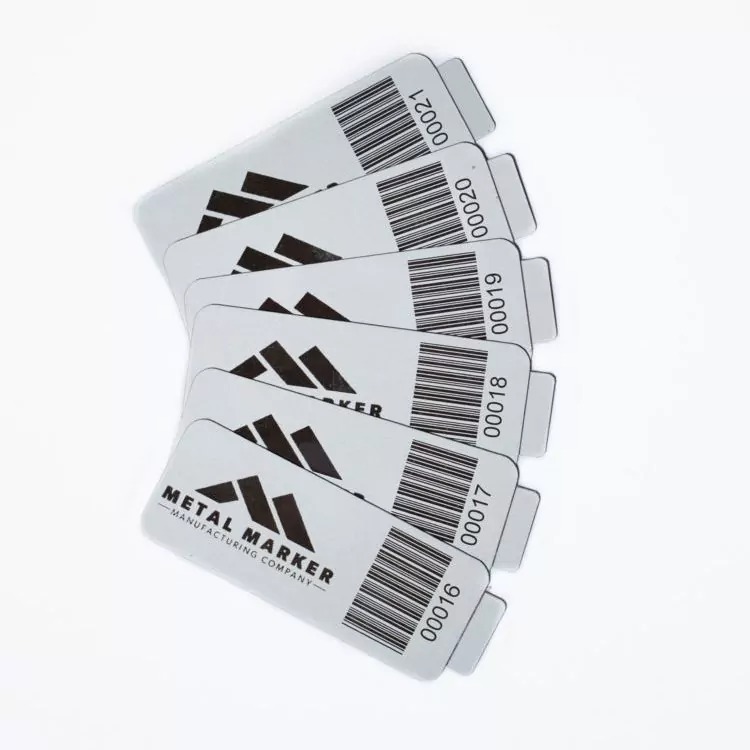

Barcode Aluminum Asset Tags
Aluminum tags marked with sequential linear barcodes for serialized inventory and warehouse scanning.
Description
A linear barcode needs enough flat width for the bars to stay separated at the scanner’s read distance. Aluminum asset tags give that flat, laser-markable surface across a production batch. Each tag in the batch can carry its own sequential barcode value.
Applications
- Serialized inventory counts across a facility
- Warehouse pick and put-away scanning
- Fixed-asset audits tied to a spreadsheet or ERP
- Equipment check-out logs at a tool crib
Material and finish choices
Matte or natural anodized aluminum keeps glare down, which helps handheld scanners read the bars. Brushed finish is an option where the tag also needs to look clean on display. Bar width and the quiet zone on each side get checked against your scanner model before marking starts.
Standard size guide
75x25mm and 50x20mm are common widths for a barcode plus a short text line. Rounder shapes are not practical for linear codes. Thickness runs 0.3-1.5mm. Larger formats can be cut to match your drawing.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Distribution center racking systems | Mounted on shelving and conveyor frames; the barcode is read with handheld laser scanners during high-volume cycle counts. |
| Hospital portable equipment fleets | Attached to IV pumps and monitors; nursing staff scan the barcode bedside to log check-in and check-out of shared devices. |
| Manufacturing plant tooling and fixtures | Fixed to jigs and fixtures; the barcode ties the tag to CMMS work orders during preventive-maintenance rounds. |
| Government office equipment inventories | Applied to desktop and IT equipment so the barcode integrates directly with existing barcode-based asset software. |
| Vehicle fleet maintenance shops | Mounted on tool carts and shop equipment, scanned at shift handoff to confirm tools are accounted for. |
Specifications
| Material | aluminum (other grades on request) |
| Thickness | 0.3-1.5 mm |
| Size | 25x25mm, 40x15mm, 50x20mm, 75x25mm (custom to your drawing) |
| Marking | laser engraving for variable data |
| Surface finish | colored or natural anodized, brushed, matte |
| Mounting | 3M/VHB adhesive, mounting holes, rivets |
| Tolerance | +/-0.05-0.10 mm |
| Variable data | serial numbers, QR codes, or barcodes |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| aluminum, 25 x 50 mm, 0.5 mm, simple finish | US$0.15-0.26 |
| aluminum, medium size, standard finish | US$0.24-0.36 |
| aluminum, large or specialty finish | US$0.33-0.52 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Send for quote
Send your barcode symbology, data range, and preferred tag size. Send artwork or a sample for review.
