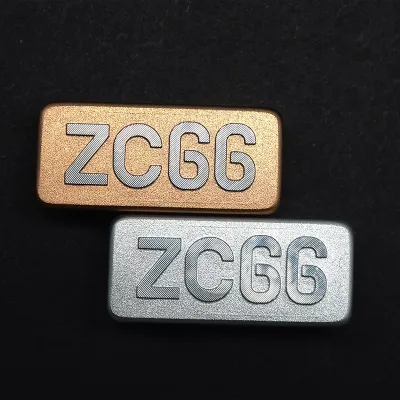

Engraved Aluminum Nameplates
Laser or mechanically engraved aluminum plates for serial numbers and other data that changes from unit to unit.
Description
Serial numbers and other variable data change from one unit to the next. Printing a new plate for each isn’t practical. Laser engraving marks each plate individually, cutting a fine line straight from a data file. Mechanical or CNC engraving is the alternative for deeper, more tactile marks.
Build options
Aluminum with an anodized, brushed, or matte finish. Laser engraving handles variable data at a shallow mark depth; CNC engraving cuts deeper where the mark needs more contrast. Deeper engraving also reads well under angled light or a quick visual check. Either process leaves a mark that resists rubbing off during handling.
Common dimensions
Compact formats from 40x20mm up to 150x100mm. Thickness typically runs 0.3-2mm for engraved plates.
Fit & applications
- Serial-numbered plates for traceable equipment
- Sequentially engraved asset or unit plates
- Data plates combining fixed text with variable fields
- Engraved logos paired with model information
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Laboratory and test bench equipment | Fastened near calibration data where engraved text withstands repeated solvent wipe-down |
| Marine electronics manufacturers | Mounted on GPS and radar unit housings where engraved text resists sun fading |
| Industrial valve manufacturers | Attached to the valve body listing size and pressure class that stays legible after years outdoors |
| Tool case and safe manufacturers | Fixed to case exteriors carrying a serialized ID number for inventory control |
Specifications
| Material | aluminum (other grades on request) |
| Thickness | 0.3-3 mm |
| Size | 80x40mm, 100x60mm, 120x80mm, 150x100mm (custom to your drawing) |
| Marking | chemical etching |
| Surface finish | anodized (5-25 micron; hard 25-70 micron), brushed (Ra 0.4-1.2 micron), matte, mirror, plated, painted |
| Mounting | 3M/VHB adhesive (0.5-1.1mm), mounting holes, rivets, screws |
| Tolerance | +/-0.05-0.10 mm |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| aluminum, 25 x 28 mm, 0.2 mm, simple finish | US$0.17-0.23 |
| aluminum, medium size, standard finish | US$0.22-0.29 |
| aluminum, large or specialty finish | US$0.27-0.39 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
How to order
Send the data file or numbering sequence, along with the plate size. Himgo confirms engraving depth and layout before running the batch. Get a quote from the factory.
