Adhesive Barcode Metal Asset Tags
A barcode tag mounted entirely with adhesive backing, built for housings and surfaces that can’t be drilled.
Description

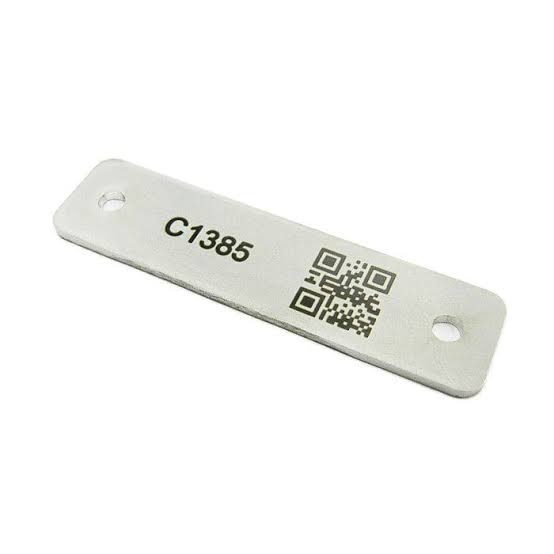

Not every surface can take a drilled hole. Thin plastic housings, sealed enclosures, and rented equipment all rule out fasteners. An adhesive barcode tag fits there: a metal body carrying a printed or laser-marked barcode, bonded flat with adhesive backing, no drilling or rivets required.
Applications
- IT equipment and appliance housings
- Control panels
- Curved surfaces where a fastener won’t seat
- Warehouses adding tags without changing existing scanning setups
Material and finish choices
Aluminum keeps the tag light for plastic and thin-wall housings; stainless suits equipment handled more often. Anodized or matte finish cuts glare for a clean scan. The adhesive layer is sized to the tag, using 3M or VHB backing film. Both metals carry the same barcode format, so switching between them doesn’t change how it scans.
Standard size guide
40x15mm and 25x25mm are usual, both thin enough for a low profile once bonded down. Larger formats fit a longer barcode data string. Custom sizes follow a drawing.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Retail store fixtures | Tag adhered to display shelving units; barcode ties fixtures to remodel inventory lists without drilling into finished surfaces. |
| School and classroom AV carts | Tag stuck to mobile projector carts; barcode links each cart to the district’s equipment checkout system. |
| Museum and gallery display cases | Tag adhered to climate-controlled display housings; barcode opens the collection asset record without damaging finished cabinetry. |
| Delivery fleet handheld scanners | Tag applied to scanner housings; barcode ties each device to a driver assignment for logistics dispatch. |
Specifications
| Material | anodized aluminum (other grades on request) |
| Thickness | 0.3-1.5 mm |
| Size | 25x25mm, 40x15mm, 50x20mm, 75x25mm (custom to your drawing) |
| Marking | laser engraving for variable data |
| Surface finish | colored or natural anodized, brushed, matte |
| Mounting | 3M/VHB adhesive, mounting holes, rivets |
| Tolerance | +/-0.05-0.10 mm |
| Variable data | serial numbers, QR codes, or barcodes |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| anodized aluminum, 25 x 50 mm, 0.5 mm, simple finish | US$0.15-0.26 |
| anodized aluminum, medium size, standard finish | US$0.24-0.36 |
| anodized aluminum, large or specialty finish | US$0.33-0.52 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Send for quote
Send the barcode data, the surface it will bond to, and the size needed. Send artwork or a sample for review.
