Equipment Barcode Metal Tags
An equipment tag combining a barcode with printed model and serial fields, so a technician can read the key data without scanning first.
Description
Maintenance staff scanning an equipment tag often need more than the barcode alone — the model and serial number matter just as much when pulling up a service record. This tag carries all three on one face, laid out so a technician can read the text without scanning first.
Sizes & thickness
50x20mm and 75x25mm are common, both large enough for the barcode plus two lines of printed text without crowding. Thickness runs 0.5-1.5mm depending on the metal chosen. Custom sizes follow the equipment’s mounting spot or a drawing.
Metals and finishes

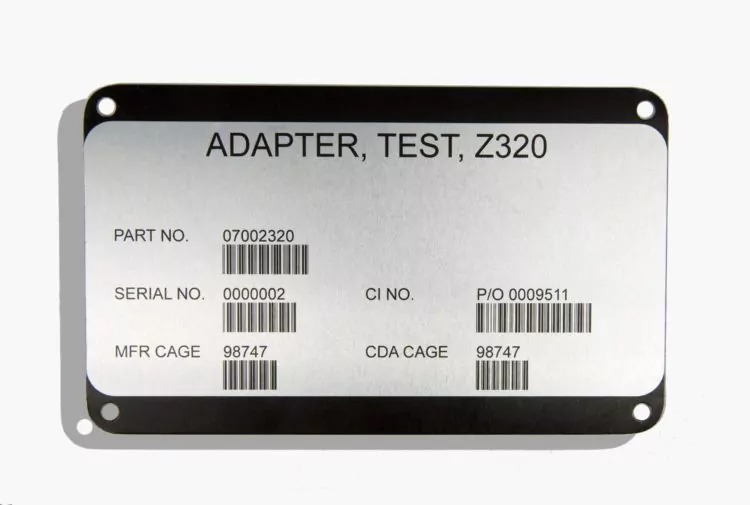

Aluminum suits lighter equipment and indoor installations; stainless 304 or 316 holds up on equipment exposed to washdown or outdoor conditions. Brushed or matte finish keeps both the printed text and the barcode legible under shop lighting.
Where buyers use it
- Maintenance and audit programs needing model and serial in view
- Service calls where a technician reads the tag without scanning first
- Equipment inspected repeatedly over its working life
Holes and rivets are the common mount for equipment that stays in service long-term.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Agricultural machinery | Tag bolted to tractors and combines; barcode scan opens service intervals for farm equipment dealers and fleet managers. |
| Material handling forklifts | Tag riveted to forklift frames; barcode links each unit to its operator inspection checklist in warehouses. |
| Rental generator and compressor fleets | Tag welded to equipment housings; barcode scan tracks which unit is out on rental and its return-service schedule. |
| Rooftop HVAC units | Tag fixed to unit housings on building roofs; barcode links each unit to its filter-change and maintenance schedule for facilities technicians. |
Specifications
| Material | anodized aluminum (other grades on request) |
| Thickness | 0.3-1.5 mm |
| Size | 25x25mm, 40x15mm, 50x20mm, 75x25mm (custom to your drawing) |
| Marking | laser engraving for variable data |
| Surface finish | colored or natural anodized, brushed, matte |
| Mounting | 3M/VHB adhesive, mounting holes, rivets |
| Tolerance | +/-0.05-0.10 mm |
| Variable data | serial numbers, QR codes, or barcodes |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| anodized aluminum, 25 x 50 mm, 0.5 mm, simple finish | US$0.15-0.26 |
| anodized aluminum, medium size, standard finish | US$0.24-0.36 |
| anodized aluminum, large or specialty finish | US$0.33-0.52 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Start a quote
Send the barcode data, the model and serial fields to print, and the mount method. Get a quote from the factory.
