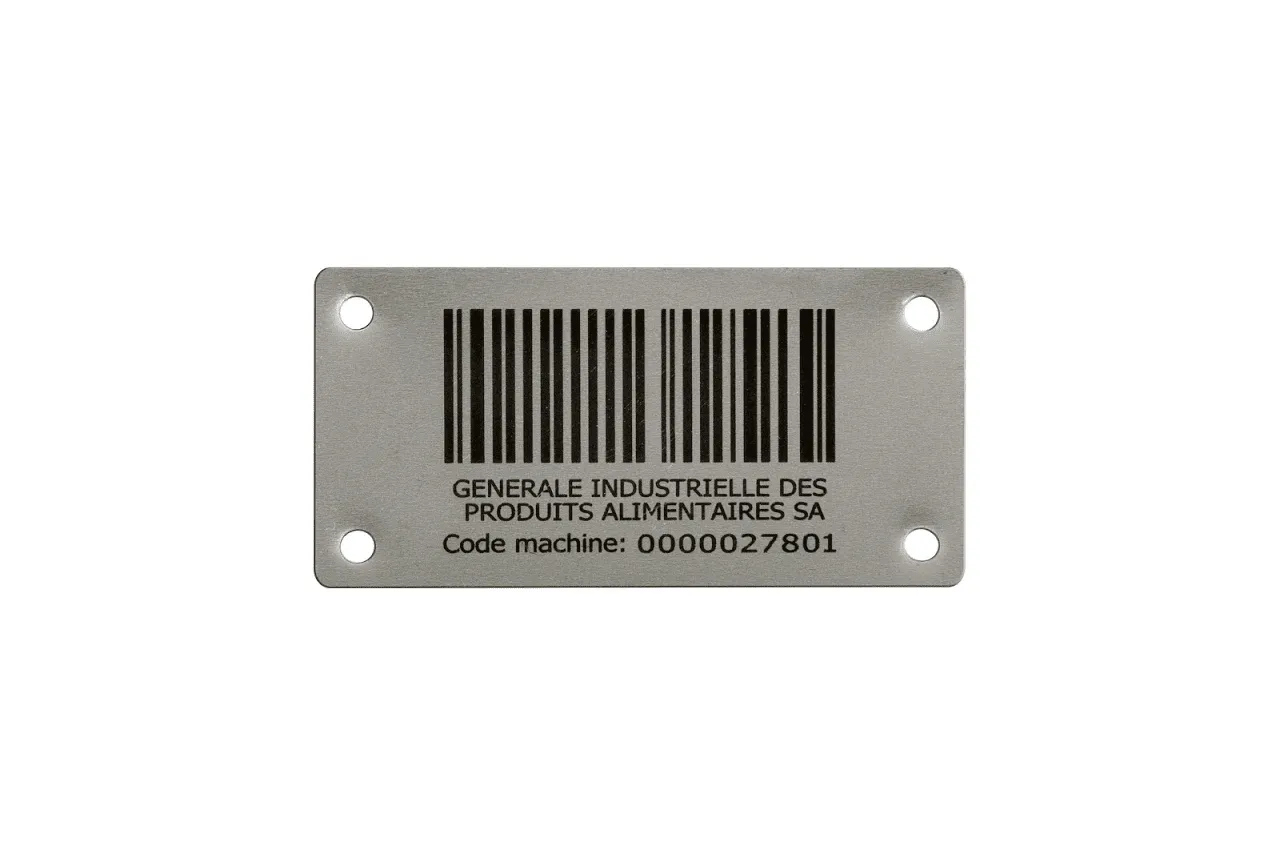

Stainless Steel Barcode Asset Tags
A stainless barcode tag etched or laser-marked to hold up outdoors and through repeated washdowns and handling.
Description
A barcode that fades or peels stops doing its job long before the equipment gets retired. Stainless gives the code a body that holds up under repeated washdowns and rough handling — longer than a printed label would. Himgo etches or laser-marks the barcode into 304 or 316 stainless, so the record stays tied to the right unit long after installation.
Build options
304 covers most industrial tracking; 316 suits washdown chemicals or salt air. Etching cuts the barcode into the surface itself; laser marking works faster for high-volume runs. Brushed finish resists showing handling marks between scans. Both grades take the same laser or etched mark.
Common dimensions
50x20mm and 75x25mm are usual, both wide enough to keep barcode bars readable at typical handheld range. Thinner or smaller formats fit tighter mount space. Custom sizes follow a drawing.
Fit & applications
- Industrial equipment tracking
- Tool-crib control
- Maintenance programs in outdoor or wash-down settings
Holes or rivets are the common mount for equipment serviced repeatedly over its working life.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Pharmaceutical cleanrooms | Stainless tag mounted on mixing tanks and filling lines; barcode scan pulls batch and cleaning validation records under frequent wipe-down. |
| Commercial kitchen equipment | Tag riveted to stainless ovens and prep tables; barcode links to service tickets for restaurant maintenance contractors. |
| Cold storage warehouses | Tag fixed to refrigeration units and door hardware; barcode scan opens temperature log history in a corrosion-prone, humid environment. |
| Laboratory autoclaves and sterilizers | Tag mounted on chamber housings; barcode scan tracks cycle counts and certification dates. |
Specifications
| Material | stainless steel (other grades on request) |
| Thickness | 0.3-1.5 mm |
| Size | 25x25mm, 40x15mm, 50x20mm, 75x25mm (custom to your drawing) |
| Marking | laser engraving for variable data |
| Surface finish | colored or natural anodized, brushed, matte |
| Mounting | 3M/VHB adhesive, mounting holes, rivets |
| Tolerance | +/-0.05-0.10 mm |
| Variable data | serial numbers, QR codes, or barcodes |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| stainless steel, 25 x 50 mm, 0.5 mm, simple finish | US$0.21-0.36 |
| stainless steel, medium size, standard finish | US$0.34-0.51 |
| stainless steel, large or specialty finish | US$0.47-0.74 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
How to order
Send the barcode symbology, the target size, and the mount method. Get a quote from the factory.
