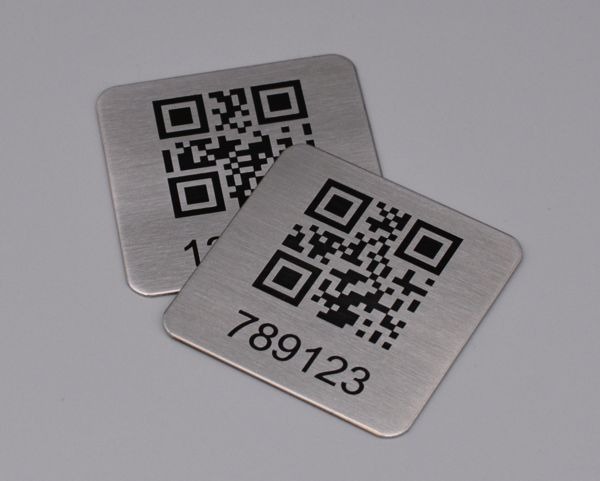

QR Code Aluminum Asset Tags
Aluminum tags laser-marked with a QR code sized and toned to stay scanner-readable on IT and mobile equipment.
Description
A QR code on an asset tag only works if the laser can hold sharp, square modules at small scale. Aluminum takes laser marking cleanly, so the code stays scannable after the surface is handled or wiped down. That reliability matters most on IT gear and rolling equipment tracked through a phone scan.
Metals & surface options
Aluminum alloy is the usual base for QR tags, kept light for laptops, monitors, and mobile carts. Anodized and matte finishes both give enough contrast for the code to read clearly. Module size gets set against your scanner’s read distance before laser engraving starts.
Typical projects
- IT asset tracking linked to a database record
- Rental or pool equipment checked in by scan
- Warehouse bin and shelf tagging
- Maintenance rounds logged from a phone
Sizes we run
40x15mm and 75x25mm give room for a code plus a printed reference number. Round formats near 30mm also work for compact gear. Thickness sits between 0.3mm and 1.5mm depending on mounting. Custom sizes run from the same drawing-review process.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Warehouse racking and pallet storage | Fixed to shelf uprights and pallet frames; staff scan the QR code with a phone camera during cycle counts without a dedicated scanner. |
| Hospital biomedical equipment | Attached to portable devices and monitors; techs scan the tag to pull maintenance history and calibration due dates on the spot. |
| Construction site tool fleets | Riveted to power tools and equipment; field crews scan the QR code with a phone to check tools in and out at the job trailer. |
| Retail store fixtures and POS hardware | Mounted on registers and display units, with the QR code linking staff to service records and support contacts. |
| University lab equipment | Fixed to shared instruments so students and staff scan in to log usage time and report issues. |
Specifications
| Material | aluminum (other grades on request) |
| Thickness | 0.3-1.5 mm |
| Size | 25x25mm, 40x15mm, 50x20mm, 75x25mm (custom to your drawing) |
| Marking | laser engraving for variable data |
| Surface finish | colored or natural anodized, brushed, matte |
| Mounting | 3M/VHB adhesive, mounting holes, rivets |
| Tolerance | +/-0.05-0.10 mm |
| Variable data | serial numbers, QR codes, or barcodes |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| aluminum, 25 x 50 mm, 0.5 mm, simple finish | US$0.15-0.26 |
| aluminum, medium size, standard finish | US$0.24-0.36 |
| aluminum, large or specialty finish | US$0.33-0.52 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
What to send
Send the QR data set or file naming pattern along with your preferred tag size. Request a sample before bulk production.
