Etched Stainless Steel Nameplates
Etched stainless steel nameplates with recessed lines around 0.02-0.15mm deep, suited to color fill and frequent cleaning.
Description
A recessed line holds paint fill better than a surface print, especially on equipment wiped down often. Etching stainless steel 304 or 316 cuts the artwork into the metal, roughly 0.02-0.15mm deep. The recess then takes a color fill without the paint sitting proud of the surface.
Metals & surface options
Both 304 and 316 etch cleanly at a minimum line width near 0.30mm on steel. Brushed or matte surfaces are typical after etching. Color fill in the recessed lines is optional, and natural metal etching without fill also reads clearly.
Typical projects

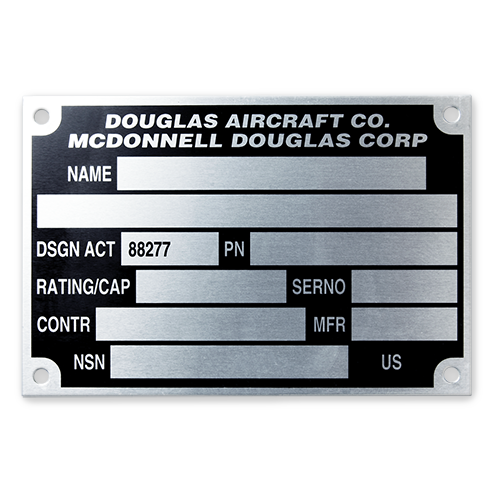

- Rating plates wiped down or cleaned regularly
- Two-color logos or text using recessed fill
- Technical panels with fine text that must survive handling
- Outdoor plates where a raised print might chip over time
Sizes we run
Standard sizes span 80x40mm to 200x100mm, thickness 0.3-5mm. Custom cutouts and larger formats follow your drawing.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Outdoor monument and wayfinding signage | Etched stainless plates keep fine typography legible after years of weather exposure. |
| Pharmaceutical cleanroom equipment | Etched plates give a smooth, non-raised surface on process equipment that avoids particulate traps. |
| Food processing stainless tanks | Etched plates on tank exteriors survive daily washdown while keeping fine batch-code text legible. |
| Museum and memorial plaques | Etched stainless plates reproduce fine lettering and imagery detail for permanent outdoor display. |
Specifications
| Material | stainless steel (other grades on request) |
| Thickness | 0.3-3 mm |
| Size | 80x40mm, 100x60mm, 120x80mm, 150x100mm (custom to your drawing) |
| Marking | chemical etching |
| Surface finish | anodized (5-25 micron; hard 25-70 micron), brushed (Ra 0.4-1.2 micron), matte, mirror, plated, painted |
| Mounting | 3M/VHB adhesive (0.5-1.1mm), mounting holes, rivets, screws |
| Tolerance | +/-0.05-0.10 mm |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| stainless steel, 25 x 28 mm, 0.2 mm, simple finish | US$0.24-0.32 |
| stainless steel, medium size, standard finish | US$0.31-0.41 |
| stainless steel, large or specialty finish | US$0.38-0.55 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
What to send
Send artwork or a sample for review, plus your fill color if the design needs one. Himgo confirms etch depth before production.
