Small Text Engraved Metal Labels
A metal label built for small engraved text, with character size checked for readability before a sample run.
Description
How small can engraved text go before it stops reading clearly? This label format is built around that question, with text size checked before sampling. A crowded field with tiny characters risks blurring under a laser or etch pass.
Sizes & thickness
Plates run 30x30mm up to 60x30mm, at 0.2-1mm thickness, giving enough surface for dense text without crowding. Larger formats are available for longer spec lines.
Metals and finishes

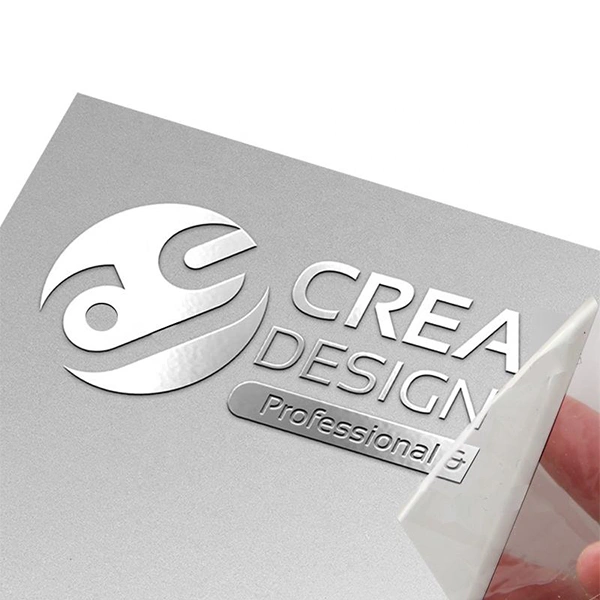

Aluminum and stainless steel both hold fine engraved detail. Matte and brushed finishes give the clearest contrast for small characters; laser engraving or chemical etching are the two marking routes. Line spacing and stroke width both get checked against the chosen process before sampling.
Where buyers use it
Dense small text shows up on:
- Spec labels with several data lines
- Warning text with regulatory wording
- Compact plates on small equipment
- Fields where legibility is reviewed before sampling
Typical applications
| Industry / setting | How this product is used |
|---|---|
| PCB and electronics component marking | Small engraved text label carrying dense spec and compliance data on compact enclosures |
| Precision tool and gauge manufacturers | Small engraved calibration text applied where surface space is limited |
| Connector and cable assembly manufacturers | Small engraved part number text applied to connector shells |
| Surgical and medical instrument marking | Small engraved lot and UDI text applied to compact instrument handles |
| Fastener and small hardware component makers | Fine engraved text tag applied to small clasps and fittings |
Specifications
| Material | aluminum (other grades on request) |
| Thickness | 0.2-1 mm |
| Size | 40x20mm, 60x30mm, 80x25mm, 30x30mm (custom to your drawing) |
| Marking | chemical etching, screen/UV printing, brushing, laser marking |
| Surface finish | brushed, anodized, printed color, matte |
| Mounting | thin 3M adhesive backing, mounting holes |
| Tolerance | +/-0.05-0.10 mm |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| aluminum, 40 x 20 mm, 0.3 mm, simple finish | US$0.10-0.19 |
| aluminum, medium size, standard finish | US$0.17-0.27 |
| aluminum, large or specialty finish | US$0.25-0.40 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Start a quote
Send your text file with the intended character height. Himgo reviews readability before confirming the process. Send the artwork for a review sample.
