Equipment Data Metal Labels
A technical data plate carrying model, rating, and spec fields in one layout. Printed or etched, sized to the field count.
Description
How many data fields does a label need to carry? Just a model number, or a rating and a compliance line too? Himgo lays out technical data labels in aluminum or stainless, sized to the field count.
Applications
- Technical data plates listing model and rating
- Compliance and spec-line labels on equipment
- Multi-field plates for control cabinets
- Compact data tags for smaller units
Material and finish choices
Aluminum with printed color handles multi-field layouts without the cost of engraving each line. Stainless steps in where the plate sees regular handling. Matte finish reduces glare across data-heavy text.
Standard size guide

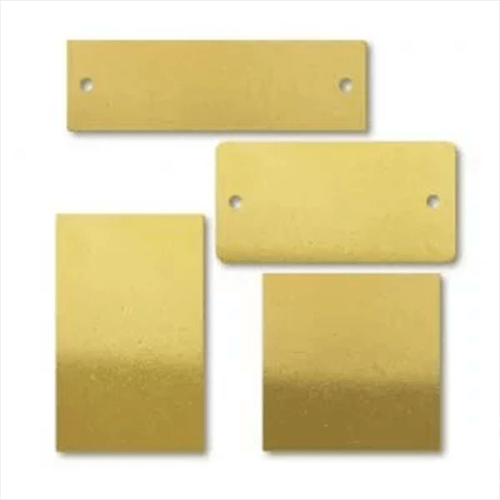

60x30mm and 80x25mm are common for plates with several fields. 30x30mm covers a compact single-field version. Any size cuts to your drawing.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Electrical panel builders | Data plate riveted inside the panel door carrying voltage, amperage, and circuit data for electricians. |
| Pump and motor manufacturers | Nameplate mounted on the motor frame carrying horsepower, RPM, and phase data for installers. |
| Pressure vessel fabricators | Plate fixed near the vessel’s access port carrying capacity and design pressure data for inspectors. |
| HVAC rooftop unit assemblers | Label mounted on the unit’s service panel carrying refrigerant charge and electrical data for technicians. |
| Generator set builders | Plate riveted to the control panel carrying output rating and fuel type data referenced during servicing. |
Specifications
| Material | aluminum (other grades on request) |
| Thickness | 0.2-1 mm |
| Size | 40x20mm, 60x30mm, 80x25mm, 30x30mm (custom to your drawing) |
| Marking | chemical etching, screen/UV printing, brushing, laser marking |
| Surface finish | brushed, anodized, printed color, matte |
| Mounting | thin 3M adhesive backing, mounting holes |
| Tolerance | +/-0.05-0.10 mm |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| aluminum, 40 x 20 mm, 0.3 mm, simple finish | US$0.10-0.19 |
| aluminum, medium size, standard finish | US$0.17-0.27 |
| aluminum, large or specialty finish | US$0.25-0.40 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Send for quote
Send the data fields and your preferred layout. Himgo lays out the plate so every field stays readable. Send your drawing for a factory-direct quote.
