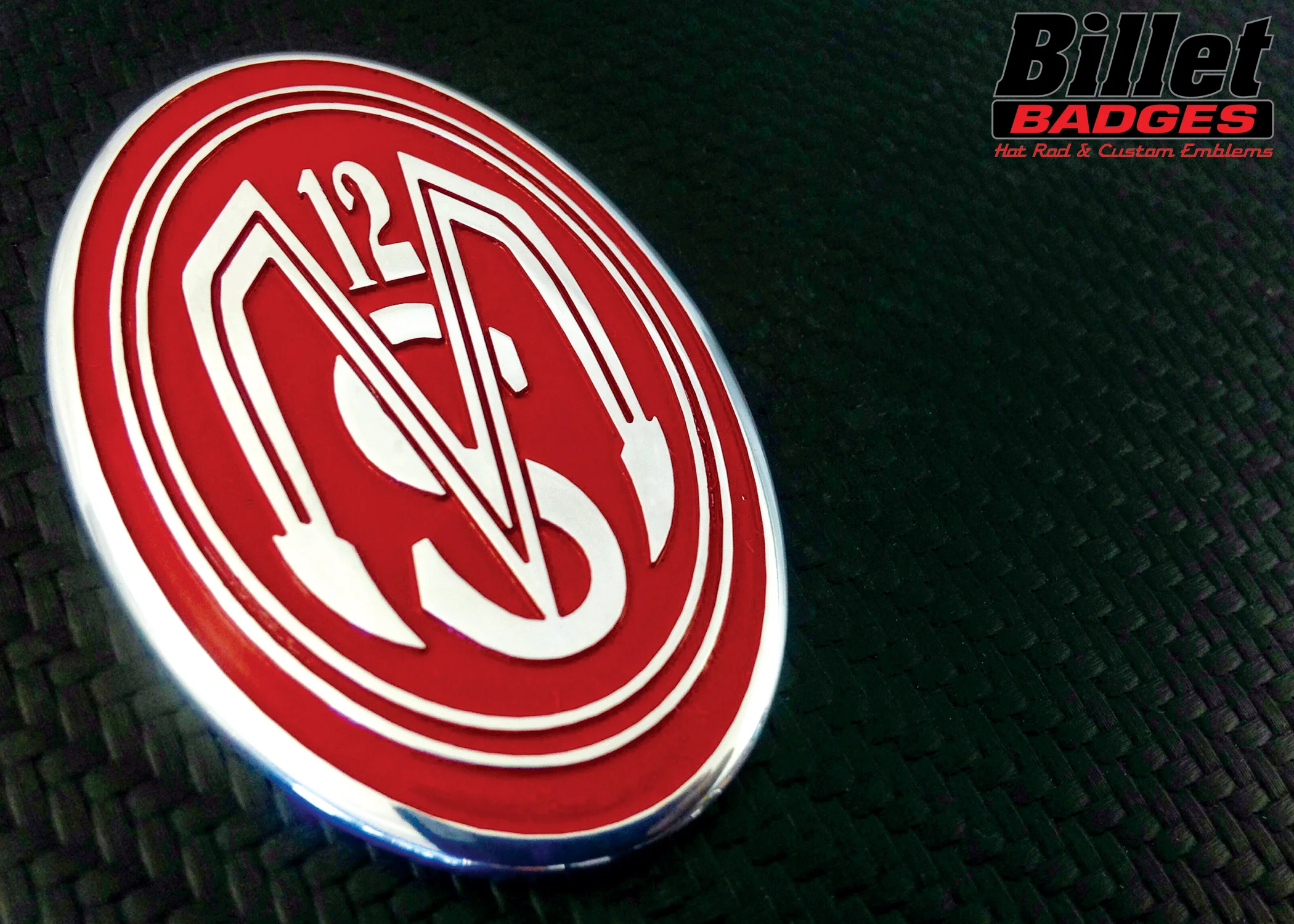

Raised 3D Metal Emblems
A cast logo that lifts off the base plate to catch light and shadow. Relief height and finish are set from your artwork, not fixed in advance.
Description
A flat printed logo reads fine up close. A badge on a hood or dashboard needs more: it has to catch light and throw a shadow. A raised 3D emblem lifts the logo off the base plate instead of leaving it flush. Relief height and base thickness are set from the artwork, so the shape holds up at a distance and under different light.
Where it fits
- Automotive badges mounted on grilles, trunk lids, or interior trim
- Motorcycle and truck emblems built for outdoor exposure
- Brand emblems on appliance fronts and machinery covers
- Decorative brand parts where a printed or etched mark falls flat
Common sizes
Most raised emblems run 40mm, 60mm, 80mm, or 100mm, with overall size 30-120mm and thickness 2-5mm. Relief sits in the 0.5-3mm range, depending on logo depth. Any size or shape can be cut to your drawing.
Materials & finishes
Zinc alloy is the usual base for cast relief, with aluminum, stainless, and nickel used for specific projects. Plating, paint, or a PVD coating go over the cast shape once the relief is confirmed. The finish is matched to the surrounding part rather than fixed in advance.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Luxury vehicle grille programs | Deep 3D relief logo mounted on the grille to give the badge visual weight and depth. |
| Motorcycle tank emblem makers | Sculpted 3D badge with raised lettering fixed to the fuel tank side panel. |
| Sports team and club merchandise | 3D mascot emblem produced for jackets, banners, and fan merchandise. |
| Corporate lobby signage | Dimensional 3D brand emblem mounted on a reception wall. |
| Award and trophy makers | Raised 3D emblem used as the centerpiece on a plaque or trophy base. |
Specifications
| Material | zinc die-cast (other grades on request) |
| Thickness | 2-5 mm |
| Size | 40mm, 60mm, 80mm, 100mm (custom to your drawing) |
| Marking | zinc die casting, metal stamping, electroforming, plating |
| Surface finish | chrome/gold/nickel plating (5-25 micron), painted, PVD (gun-black, gold, rose gold, matte black) |
| Mounting | 3M adhesive, pins, screws, studs |
| Tolerance | +/-0.10-0.20 mm (die-cast) |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
| Tooling | US$150-2,000 one-time (by complexity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| zinc die-cast, 50 mm, 2.5 mm, simple finish | US$0.45-0.92 |
| zinc die-cast, medium size, standard finish | US$0.85-1.40 |
| zinc die-cast, large or specialty finish | US$1.26-2.07 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Getting a quote
Send your artwork or a rough sketch of the emblem shape, note where it mounts, and Himgo will quote tooling and unit price together.
