Machinery Metal Rating Plates
Rating plates mounted with rivets or screws for machinery housings, holding model and serial data through vibration.
Description
Machinery housings vibrate, so the rating plate needs a mount that won’t loosen over time. Rivets and screws hold the plate through daily use, more securely than adhesive on some surfaces. Himgo builds this plate for machinery ID where fastening matters as much as the printed data.
Metals & surface options

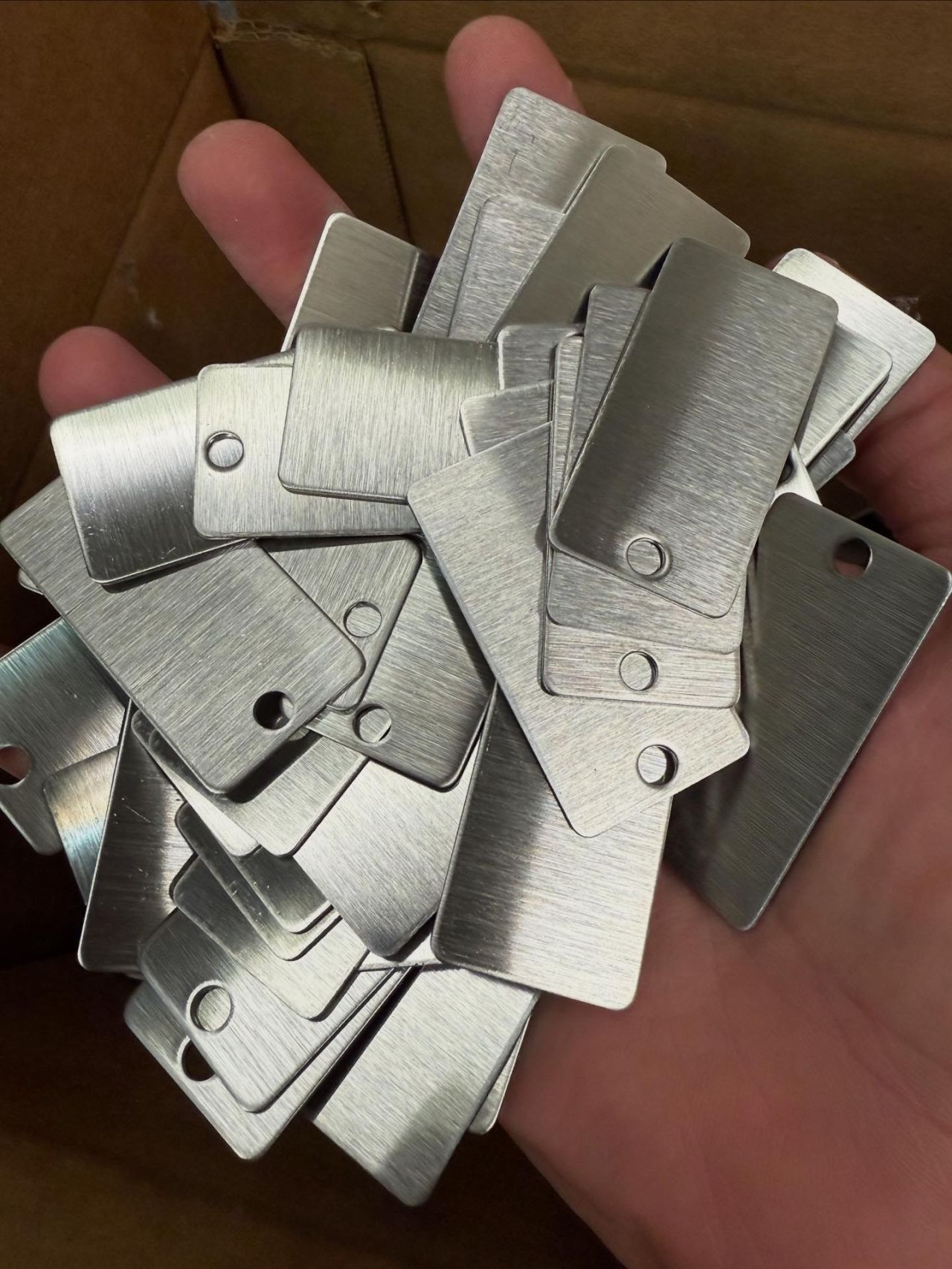

Stainless 304/316 or aluminum 5052/6061 both handle repeated vibration and cleaning. Brushed finish (Ra 0.4-1.2 micron) resists scuffing near moving parts. Mounting holes are sized for rivets or screws per your bracket spec. Etched or stamped data holds depth even after years of handling.
Typical projects
- Gearbox and motor housing ID plates
- Machine-frame plates listing model and serial data
- Panels fastened through vibration-prone equipment
- Plates combined with rivet or screw mounting holes
Sizes we run
Sizes we run: 80x40mm, 100x60mm, 120x80mm, 150x100mm, and 200x100mm. Thickness runs 0.3-3mm, matched to the mounting hardware. Any dimension can be produced to your drawing.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| CNC machine tool manufacturing | Plate riveted to the machine base showing model number, voltage, and build date for operators and service technicians. |
| Industrial pump and compressor OEMs | Stainless plate fastened to the housing listing flow rate, pressure rating, and motor spec for field commissioning. |
| Packaging line equipment builders | Aluminum plate screwed to the control cabinet door showing amperage draw and phase for the wiring electrician. |
| Agricultural machinery manufacturers | Plate fixed to the gearbox housing showing torque rating and lubricant spec for maintenance crews. |
Specifications
| Material | 304 stainless (other grades on request) |
| Thickness | 0.3-3 mm |
| Size | 80x40mm, 100x60mm, 120x80mm, 150x100mm (custom to your drawing) |
| Marking | chemical etching |
| Surface finish | anodized (5-25 micron; hard 25-70 micron), brushed (Ra 0.4-1.2 micron), matte, mirror, plated, painted |
| Mounting | 3M/VHB adhesive (0.5-1.1mm), mounting holes, rivets, screws |
| Tolerance | +/-0.05-0.10 mm |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| 304 stainless, 25 x 28 mm, 0.2 mm, simple finish | US$0.24-0.32 |
| 304 stainless, medium size, standard finish | US$0.31-0.41 |
| 304 stainless, large or specialty finish | US$0.38-0.55 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
What to send
Send your drawing along with the mounting hole pattern and hardware type. Himgo confirms the route after reviewing spec and quantity. Get a quote from the factory.
