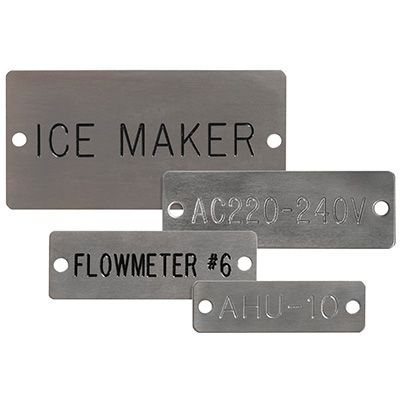

Engraved Metal ID Tags
Engraved stainless, aluminum, or brass ID tags for panels, valves, and cable ends. Mounted by hole, tie, or chain, cut to your drawing.
Description
Valve rooms, control panels, and machine skids need small tags that state what a part is. An engraved metal ID tag holds that reference: a name, a code, or a spec line, cut into metal. It survives grease and years of handling, and mounts through a hole, a cable tie, or a chain.
Sizes & thickness
Common formats run 40x20mm and 50x25mm for short text, and 75x20mm for longer strings. A 35mm round suits valve tags. Thickness runs 0.5-2mm, matched to the mounting method. Any size cuts to your drawing.
Metals and finishes

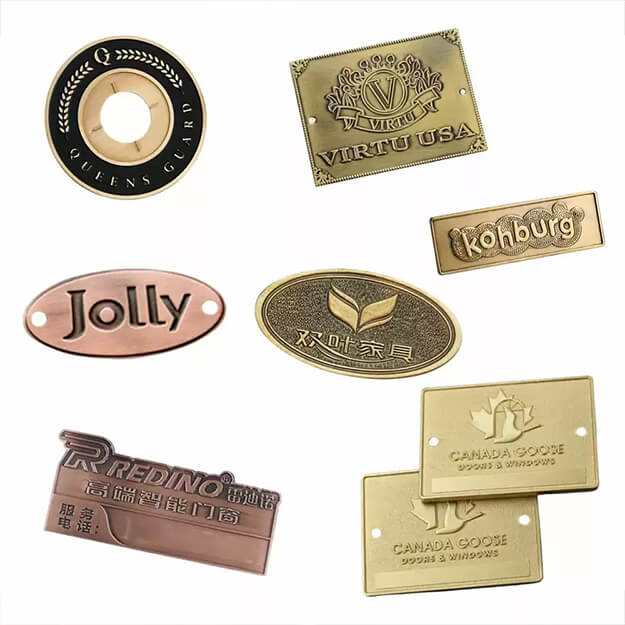

Stainless 304 or 316 suits washdown and outdoor areas. Aluminum keeps weight down on panels. Brass adds a warmer tone for visible tags. Finish stays natural, brushed, or matte, so text reads clearly.
Where buyers use it
- Panel and enclosure ID where a code must stay legible for years
- Valve and pipe tags mounted through a drilled hole
- Cable ends and hose assemblies tagged on a tie
- Equipment tags riveted to housings that get cleaned often
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Manufacturing plants | Tag mounted on stamping presses, conveyors, and other floor equipment carrying an asset number and maintenance schedule for the floor technician. |
| Commercial building mechanical rooms | Tag fixed to boilers, chillers, and pump skids listing model, serial number, and install date for facilities staff. |
| Electrical switchrooms | Tag mounted on panel doors and breaker enclosures showing circuit ID and voltage rating during lockout/tagout work. |
| Warehouse racking | Tag fixed to rack uprights and shelf faces carrying bay and level codes so pickers match orders to the right location. |
Specifications
| Material | 304 stainless (other grades on request) |
| Thickness | 0.5-2 mm |
| Size | 40x20mm, 50x25mm, 75x20mm, 35mm round (custom to your drawing) |
| Marking | laser engraving, metal stamping, chemical etching |
| Surface finish | brushed, matte, natural metal |
| Mounting | mounting holes, cable tie, chain, rivet |
| Tolerance | +/-0.05-0.10 mm |
| Variable data | serial numbers, QR codes, or barcodes |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| 304 stainless, 40 x 20 mm, 1.0 mm, simple finish | US$0.20-0.32 |
| 304 stainless, medium size, standard finish | US$0.31-0.45 |
| 304 stainless, large or specialty finish | US$0.41-0.63 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Start a quote
Send your drawing with the text, hole position, and material you need. Himgo reviews it and quotes direct from the factory.
