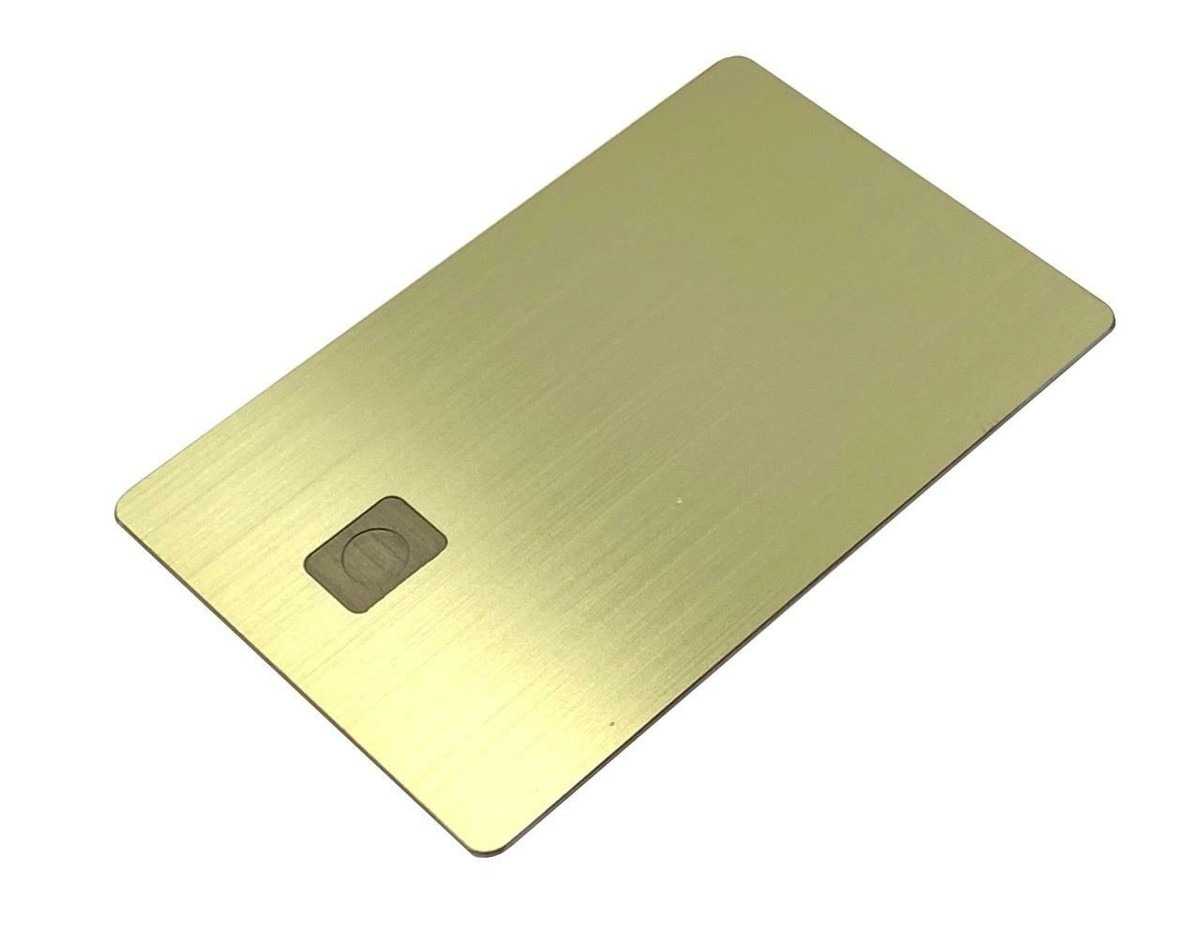

Blank Metal Cards with Chip Slot
Metal card bodies pre-cut with a chip slot sized and positioned to your module drawing.
Description
Fitting a chip module into a metal card means cutting a slot at the right depth and position. Get that wrong, and the chip sits proud. Or the card jams in a reader. Himgo cuts the slot from your drawing. The card body is then finished around it.
Sizes & thickness
- ISO card footprint, 85.6 x 54mm.
- Card thickness 0.76-1.2mm, slot depth matched to your chip module.
- Slot position checked against your drawing before cutting.
Metals and finishes
- Stainless steel or titanium base for slot stiffness.
- Brushed, matte, or black surface around the slot.
- Slot edges deburred so the module seats cleanly.
Where buyers use it
- Card programs adding an NFC or contact chip module after this stage.
- Access or payment card bodies needing a precise chip cavity.
- Card runs where slot position must match a fixed module size.
Typical applications
| Industry / setting | How this product is used |
|---|---|
| Bank card programs | The pre-cut chip slot lets a personalization bureau seat an EMV chip module without custom milling. |
| Access-control card issuers | Chip-slot cutout accepts an RFID or smart-chip module used in building-entry systems. |
| Transit and membership card operators | Chip slot holds a contactless payment or transit chip added at the bureau. |
| Corporate ID badge programs | Card body receives an employee smart-chip module fitted into the slot during badge issuance. |
| Hotel and resort membership programs | Chip-slot card accepts a room-key or loyalty chip inserted by the property’s card vendor. |
Specifications
| Material | 304 stainless (other grades on request) |
| Thickness | 0.76-1.2 mm |
| Size | 85.6x54mm (ISO), custom shapes and cut-outs (custom to your drawing) |
| Marking | laser cutting, laser engraving, chemical etching, brushing, PVD |
| Surface finish | brushed, mirror, matte, black, PVD |
| Mounting | card format; optional NFC reserve |
| Tolerance | +/-0.10 mm |
| MOQ | 100-500 pcs (by complexity) |
| Lead time | sample 5-7 days; bulk 12-30 days (by quantity) |
Size & price reference
| Example spec | Ref US$/pc |
|---|---|
| 304 stainless, 85.6 x 54 mm (ISO), 0.8 mm, simple finish | US$1.50-2.55 |
| 304 stainless, medium size, standard finish | US$2.40-3.60 |
| 304 stainless, large or specialty finish | US$3.30-5.17 |
Indicative only. Final price depends on surface finish, mounting method, marking complexity, and order quantity. Send your drawing for a factory-direct quote.
Start a quote
Send the chip module datasheet or slot dimensions. Include your card outline too. Send your drawing for a factory-direct quote.
